Enjue Telescopic 20feet 40feet Over Height Container Lifting Spreader with Zpmc Spreader

Product Description

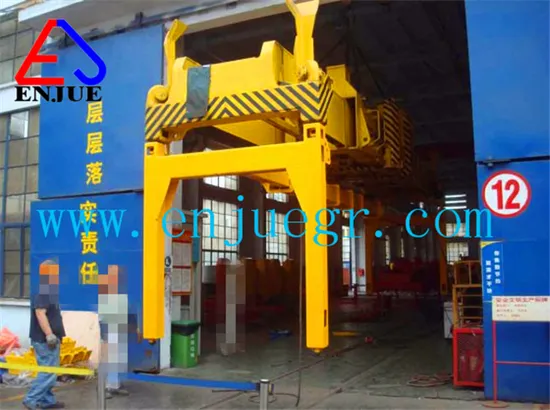

Semi-Automatic Container Spreader 20 Feet 40 Feet Semi-Automatic Container Spreader mechanical lift Spreader with iso certificate /shanghai enjue container Lifting Tool Beam fixed 10feet/20feet/ 40feet/45feet 30t container Lifting Beam for sale
1:product description:
This semi auto container spreader is easy to operation. when loading ,the middle rope of the spreader will
be strained and the pins will turn around and lock the container.
Semi-automatic spreaders are fixed to the hooks of gantry, bridge and portal cranes.
Container Spreader Features
1. Light weight
2. Semi automatic
3. Designed for use with cinventional ships and harbour cranes
4. Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually
operated handle
5. Suspendend on the crane by two wire ropes
6. The spreader shall have corner guides as detacheable flippers
Available with no impetus container spreaders, semi-automatic container spreader, telescopic container
spreader, empty container spreader box, doublecontainer spreader, container spreader devices and so on.
Product Parameters
Semiautomatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Item	20'	40'
Rated SWL	25-35T	32-45T
Max. SWL	40T	50T
Dead Weight	1.2-2.6T	1.2-2.6T

2.Overall Dimensions

Item	20'	40'
Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
Overall Length	≈ 6058 mm	≈12188 mm
Overall Width	≈ 2610 mm	≈2610 mm
Frame Height	≈ 636 mm	≈731 mm

3. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B

Shipping and package

Certifications
Welcome you visit our web, we are mainly focus on products including all kinds of grabs, container spreader and other kind of customized lifting beam; hopper, Deck crane; they are wildly used on the cargo loading and unloading in the port or ship. ENJUE professional R$D team delivers standardized and tailored solutions with equipment that combines rugged reliability with industry setting productivity standards. ENJUE offers complete overview of any project requirements, froBased for over 10 years in the port city of Nantong/Shanghai, China,
Pls feel free to contact with us!

---
