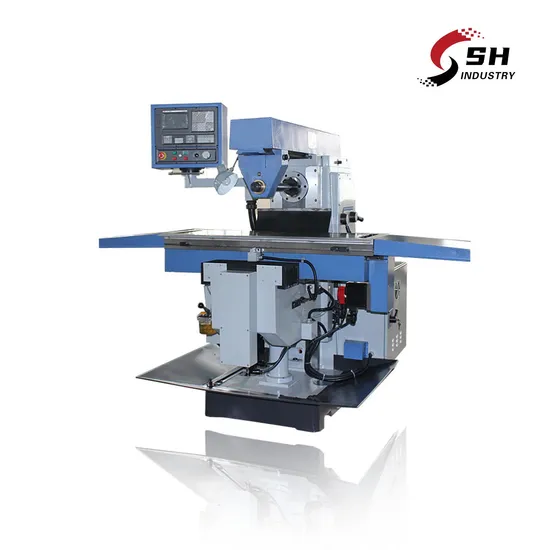

Horizontal Xk6032 Hot Sell Low Cost CNC Milling Machine Hot Selling Low

Product Description

Product Description
Horizontal Xk6032 Hot Sell Low Cost CNC Milling Machine Hot selling low
Product Parameters

Main technical specifications	Specifications	Units	XK6032	XK6040
	Table size	mm	1320x320	1700x400
	Table travel (X.Y.Z)	mm	800x350x280	920x380x350
	T-type slot(numbers / width /space)	mm	3-18-70	3-18-90
	Max. load working table	kg	320	500
	Distance from spindle axis to table	mm	20-370	30-410
	Distance from column vertical guide way to the center of table	mm	225-505	275-625
	Rapid feed speed(X.Y.Z)	mm/min	6000/3000/6000	6000/3000/6000
	Feed speed (X.Y.Z)	mm/min	6-3200/3-1600/6-3200	6-3200/3-1600/6-3200
	Spindle taper		ISO50(7:24)	ISO50(7:24)
	Spindle speed range	rpm	30-1500(18 steps)	30-1500(18 steps)
	Spindle motor power	KW	7.5	11
	Longitudinal, transverse feed motor torque(X.Y)	N. m	12	12
	Vertical feed motor torque (Z)	N. m	22	22
	Max. spindle torque	N. m	1000	1000
	Overall dimensions(Lx W x H)	mm	1929x2055x1960	2310x2200x2394
	Machine weight	Kg	2800	3850

Advantage:
1. High flexibility, designed with flexible modules.
2. High accuracy, variable spindle speeds in 2 steps.
3. Pneumatic tool clamping, metal protection.
4. Standard equipment: SIEMENS808D
5. CNC system: FANUC,Mitsubishi,GSK980MDC
The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
2. Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
3. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
4. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.
5. Can be petty four axis of rotation, in order to meet the special requirements of machining parts
Realistic photos
Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
