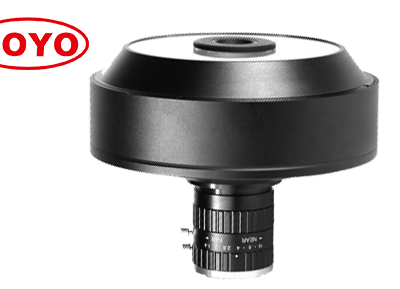

5 Models 360° Outwall Outer Surface Imaging Megapixel Lenses Low Distortion Industrial Camera CCTV Lens Pharmacy Factory Automation Machine Vision China Optics
* Outwall surface imaging
* Varity of format / sensor size 2/3”，1/1.8", 1/3"
* High resolution 5.0megapixel
* Short Working distance
* Application : pharmacy, bottle, tube etc.
Model
| Resolution
| Format
| Image Circle
| Aperture
| W.D (mm)
| FOV
| Mount
|
SOD3601
| 5MP
| 1/3"
| Φ3.6mm
| F6.0-16
| 19-46.2
| 7.5*5.2 min
30*25 max
| C
|
SOD3605
| 5MP
| 1/3"
| Φ3.6mm
| F6.0-16
| 9-46.52
| 7.5*6.4 min
30*25.6 max
| C
|
SOD3602
| 5MP
| 1/1.8"
| Φ5.32mm
| F8.0-16
| 9-45.4
| 7.5*5.3 min
30*25 max
| C
|
SOD3603
| 5MP
| 2/3"
| Φ6.6mm
| F8.0-16
| 14-48.2
| 7.5*4 min
30*23.4 max
| C
|
Model
| SOD3601
|
Sensor
| 1/3"
|
Image circle
| Φ3.6
|
W.D
| 19-46.2mm
|
Aperture
| F6.0~16
|
Diameter(mm)
| Height (mm)
| WD(mm)
| FNo.
|
7.5
| 4.6
| 46.2
| 16
|
10
| 6.8
| 42.2
| 12
|
15
| 10.9
| 34.5
| 10
|
20
| 15.3
| 26.9
| 8
|
25
| 19.54
| 19
| 6
|
30
|
|
|
|
Model
| SOD3602
|
Sensor
| 1/1.8"
|
Image circle
| Φ5.32
|
W.D
| 9-45.4mm
|
Aperture
| F8.0~16
|
Diameter(mm)
| Height (mm)
| WD(mm)
| FNo.
|
7.5
| 5.3
| 45.4
| 16
|
10
| 7.7
| 41.5
| 16
|
15
| 11.86
| 33.8
| 12
|
20
| 16.5
| 26.2
| 12
|
25
| 20.7
| 18.5
| 10
|
30
| 25
| 9
| 8
|
Model
| SOD3603
|
Sensor
| 2/3"
|
Image circle
| Φ6.6
|
W.D
| 14-48.2mm
|
Aperture
| F8.0~16
|
Diameter(mm)
| Height (mm)
| WD(mm)
| FNo.
|
7.5
| 4
| 48.2
| 16
|
10
| 6.3
| 44.4
| 16
|
15
| 10.6
| 36.8
| 12
|
20
| 14.6
| 29.2
| 12
|
25
| 19.2
| 21.6
| 10
|
30
| 23.4
| 14
| 8
|
| 23.4
| 14
| 8
|
* Instruction:
1) Compact design with 5 megapixel
2) Imaging with 360 degree
3) Working distance various
* Application: Inspection for bottle cap, container, screw thread, plastic injection parts, die-casting parts or any machining parts ...
( Bottle Cap Outside Wall 360 Degree Inspection )
