30W 50W Gold Marking Machine with Cutting Metal Function 1-1.2mm

Product Description

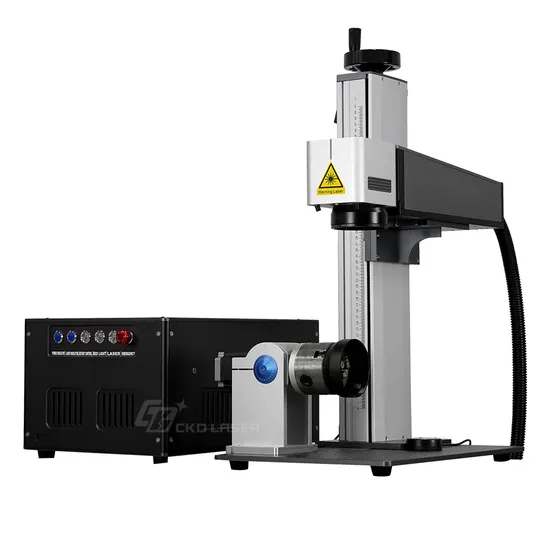

MULTI-FUNCTION PORTABLE LASER MARKING MACHINE
PLMB V19.08 Version is minimalism, strong and user-friendly, breaks the laws of "small size does not last" and "small is hard for maintain/repair/update".
Portable: free combinate with kind of equipment Strong anti-interference ability: multiple voltage stabilizing measures, including relay, rotary control, current stabilizer and so on. Efficient: alarm after process, no need for human real-time monitoring Trouble free: PLMB's parts are digital, high precision and non-deformation in long using, users can update any accessories without complex correction. Real time monitoring: users can observe the working condition is normal or abnormality by kinds of outside indicator lights.
APLLICATION PLMB V19.08 can mark bitmap or vector on metal and some non-metal. For examples:
Mark logo or photo on auto parts, electronic products, kitchenware, packaging box, gift, craft, jewelry, sanitary ware, medical apparatus, photovoltaic product, stationery, hardware, and so on.
Big power of PLMB can cut and weld thin metal. It also can clean or peal the surface of metal or painted materials. PROCESS MATERIAL
Metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Some non-metal: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face non-metal, dark stone, etc.
ALARM: alarm after marking completed, suitable for long time deeply engraving.
REAL TIME INDICATE & DYMANIC MONITOR: Can monitor inner parts condition without open the machine, by laser working indicator, power condition indicator and galvanometer working indicator, to avoid accident.
ROTARY CONTROL: avoid the harm of suddenly current fluctuation to control board and laser source, to expand service life.
DEEPLY ENGRAVING AND CUTTING:
Use 100*100mm scope lens to cut or deeply engraving, use 150*150/200*200/300*300mm scope lens to mark big contents. Lenses are optional. We support a professional cutting fixture (optional) if you need cut function more.
High-precision laser path: no matter change parts inside or move location, marking accuracy will not be affected, never out of shape even years using.
Ball screw Z-axis with focus fixture and focus reader (optional): lightly and easily focusing.
ROTARY MARKING:
EASY FOCUS:
Built-in double focus tools in galvanometer, easy to get right focus.
Built-in one button to open or off outside focus tools, expands service life.
Built-on focus reader (optional), to control off-focus data, to get more marking effects.
MULTI-FUNCTIONS:
Support color marking, real photo marking on metal or plastic with high definition effect, can automatically QR generates and jumps coding, can rotary marking on cups, rings, cylinders…
OPTIONAL DEVICE:
CKD LASER supply kinds professional and expanding devices to match PLMB, they are optional:
Cutting fixture: fix thin metal sheet for cutting, avoid transformation.
Location bar: with slide slots, can repeat and free positioning, gives material right location, to keep logo mark on the same place when bath processing.
Rotary: kinds of rotary of 50/80/10mm, or professional combinations.
Laser protect goggles: Protect eyes from laser of 200-450 & 800-2000nm, OD4+, CE.
CONFIGURATION

Type	Laser source	Focus Way	Focus Reader	Work Supervision	Software
CKD-PLMB-20	20W Q-switched or MOPA	3 dots, manually	Optional	* Alarm * Laser Indicator * Power Indicator * Galvanometer Indicator (optional)	EzCad2
CKD-PLMB-30	30W Q-switched or MOPA
CKD-PLMB-50	50W Q-switched
CKD-PLMB-60	60W MOPA
CKD-PLMB-100	100W MOPA

Remark: laser sources PLMB uses are fiber laser source.
Marking scope is optional:

	100*100mm	150*150mm	200*200mm	300*300mm
CKD-PLMB-20	Available	Available	Available	-
CKD-PLMB-30				-
CKD-PLMB-50				Available
CKD-PLMB-60
CKD-PLMB-100
Remark: It's optional of marking scope and you can choose lenes more than one for different marking scope. The smaller lens the bigger energy when the same power of laser, recommend 200*200mm when you need color marking on stainless steel. You can send your application details to us for choice help.

PLMB supports functions of starting engraving remotely and stop engraving remotely, can connect security door for emergency stop.
The user needs one more wire from "3" above to connect DB26, or use a transfer tool from "1" or "2" port above to link DB26 PINs.
UPDATE:
CKD-PLMB V19.08 is manually focus, it can be updated to be V19.10 which is E-focus, and also can be updated to be 3D dynamic focus (CKD-PL3D).

---
