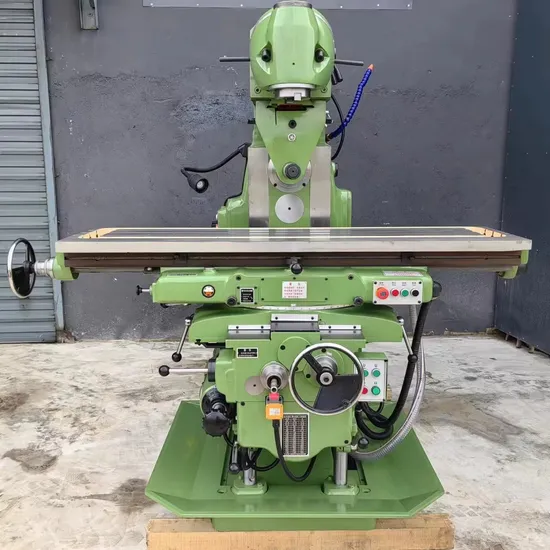

X6240 Universal Rotary Head Milling Machine with Vertical and Horizontal Rotary Head Milling Machine

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6240
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
2000X400mm
Table Travel
Manual: 1200/315/380 Auto: 1180/300/360
T Slot
3-18-90mm
Spindle Taper
ISO40 (V)/ISO 50(H)
Main Motor Power
4kw (V), 11 Kw(H)
Overall Dimension
2294X1770X1665mm
Max. Table Load
800
Spindle Speed Ranges
35-1600(V),30-1500(H)
Weight
4000kg
Transport Package
Wood CTN
Trademark
JYME
Origin
China
Production Capacity
1000

Packaging & Delivery

Package Size
229.00cm * 177.00cm * 166.00cm
Package Gross Weight
4000.000kg

Product Description


ISO50 ,5HP ,Swivel-Head Universal Milling Head with 18 Steps Speed Spindle
XYZ 3 Axis Rectangel Rails, XYZ 3 Axis Auto Feed
2000x400mm size worktable ,1200/315/380mm XYZ travel
11Kw Heavy duty,High Speed Motor
Machine Body ade by HT250 high strength cast iron
Worktable surface and rails hardened by supersonic frequency quenching
Rectangle Guideways withstand larger overturning moment
Parameters:
Item
X6240
Spindle Taper
ISO40 (V)/ISO 50(H)
Worktable Size(mm)
2000X400
MAX Manual Worktable Travel (L/H/V)(mm)
1200/315/380
MAX Automatic Worktable Travel (L/H/V)(mm)
1180/300/360
Worktable T-Slot (nunmber/width/distance)(mm)
3/18/70
Swivel Angle of Worktable
±45 degree
Swivel Angle of Vertical Milling Head
360 degree
Spindle Speed
12 steps (V),18 steps(H)
Spindle Speed Range(r.p.m)
35-1600(V),30-1500(H)
Max Load (Kg)
700
Main Motor(Kw)
4Kw (V), 11 Kw(H)
Power Feed Motor(Kw)
1.5
Coolant Pump Motor(w)
125
Range of Table Power Feed (18steps) (L,H/V)(mm/min)
23.5---1180(L/H)//8---394(V)
Speed of Table Rapid Traveling (mm/min)
2300(L/H)/770(V)
Overall Dimension(mm)
2294×1770×1665
AC Power Input (V/HZ)
380V/415V50HZ
N.W
4000kg
