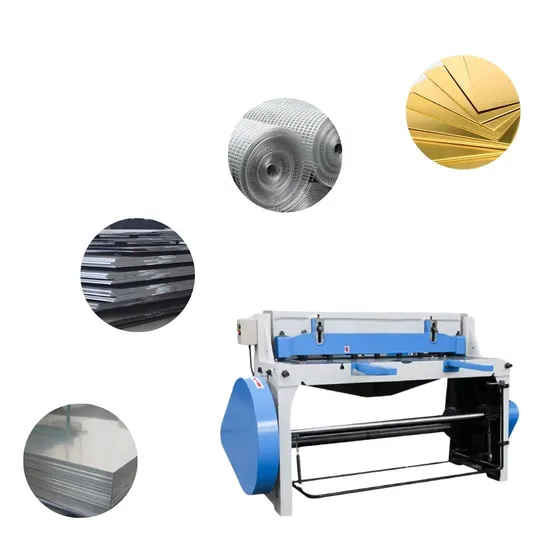

Q11 Series Mechanical Plate Shears Q11-3X1300/1500

Product Description

Specification:
1.Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2.Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3.Electric shearing machine base is steel- welding , the structure is compact, good rigidity.
4.Track of blade movement is precision casting copper,less friction
5.Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6.Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7.Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact structure, gear have good lubrication, low noise and long life.
8.Electric shearing machine equipped with pneumatic clutch device.

Model No.	Q11-3x1300	Q11-3x1500
Item No.
Specification
Max cutting Thickness	3 mm	3 mm
Max cutting Width	1300 mm	1500 mm
No. of strokes	20 mm-1	20 mm-1
Rake angle	2°25′	2°25′
Adi. Distance of back gauge	350 mm	350 mm
Power of mairmotor	3 kw	3 kw
Overall dimensions	2080x1505x1245 mm	2280x1505x1245 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
