US$1,350.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
Application
Building Crane
Lift Mechanism
Rack&Pinion
Certification
CE, ISO 9001
Safety Lock
Ls 30, 20-30kn.M
Machinery Test Report
Provided
Usage
Electrical Work Gondola Equipment
Lift Drive / Actuation
Electric Motor
Transport Package
Paper Box and Wooden Cases or as Your Requirements
Specification
Steel, Aluminum Alloy
Trademark
Steel, Aluminum Alloy
Production Capacity
5000sets/Year
Product Description

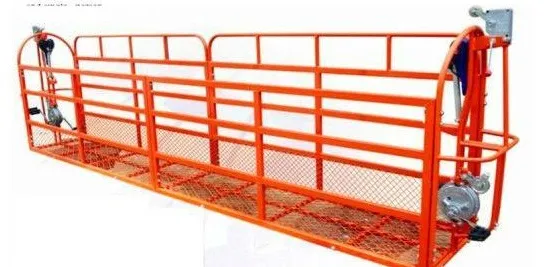

Aluminum Construction Platform Technical parameters of construction cleaning cradle:
| model | zlp500 | zlp630 | zlp800 | zlp1000 |
| appearance | painting/hot galvanized |
| fabrication material | steel/aluminum alloy |
| rated load | 500kg | 630kg | 800kg | 1000kg |
| lifting speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min |
| motor power | 2x1.5kw | 2x1.5kw | 2x1.8kw | 2x2.2kw |
| brake torque | 16km | 16km | 16km | 16km |
| steel rope angle adjusting range | 3°-8° | 3°-8° | 3°-8° | 3°-8° |
| distance between two steel rope | ≤100mm | ≤100m | ≤100m | ≤100m |
| counter weight(optional) | 25kgx30pcs | 25kgx36pcs | 25kgx40pcs | 25kgx44pcs |
| diameter of steel rope | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| max lifting height(m) | 300m | 300m | 300m | 300m |
| motor rotation speed | 1420r/min | 1420r/min | 1420r/min | 1420r/min |
| voltage(3phases)(optional) | 220v/380v/415v/440v 50hz/60hz to be OEM |
Show
Main Parts of construction cleaning cradle:
| 1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized) | 6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm |
| 2. Suspension Mechanism: Steel (painted or hot galvanized) | 7. Safety rope: 18mm,20mm |
| 3. Electric hoists:LTD6.3 or LTD8 | 8. Electric cable: 3*2.5+2*1.5 |
| 4. Safety Lock: LST30 | 9. Counterweights: Cement , cement with steel cover & Iron counterweight |
| 5. Electric control box: Along with hoists | 10. Spare parts |
Packing and Shipping
Packages Details of construction cleaning cradle for high buildings and windows cleaning
| package | platform | counter weight | hoist & safety lock | control panel & other smallparts |
| film | pallet | wooden case | carton box |
Our Company
The suspended construction cradle can be customized according to customers'requirements(drawing, specifications and so on).
After-sale services
1.Quality Assurance:
Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager. |
2.Excellent Package:
We provide standard,strong,protective package for our products to prevent is from outer damage. |
3.Quickly Response:
Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry. |
Welcome to visit our factory!
Any questions,Please feel free to contact me!
