T32 Inclined Bed Turning Cutting Drilling Milling Metal CNC Lathe Machine

Product Description

Product Parameters

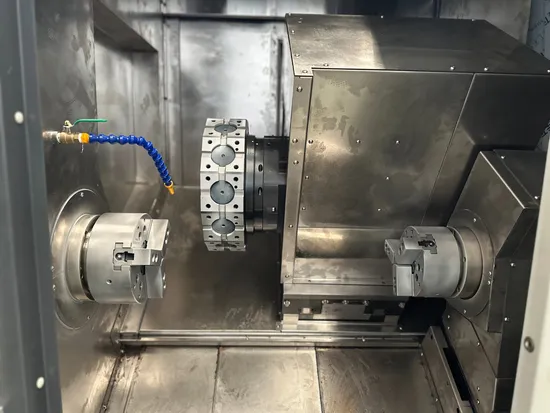

The T32 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.

ITEM		UNIT	T32
General Rules	CNC system		GSK
	physical dimension	mm	1900*1500*1680
	Total weight of machine tool	kg	1600
	Bed type		30° inclined bed
The scope of work	Maximum rotation diameter on the bed	mm	φ360
	Maximum rotation diameter on the pallet	mm	φ120
	X-axis maximum travel	mm	680
	Z axis maximum travel	mm	400
Spindle	Spindle		Mechanical spindle
	Spindle speed	rpm	50-3000
	Spindle end		A2-5
	Spindle through hole diameter	mm	φ48
Working accuracy	Servo main motor power	kw	4
	X-axis servo motor	Nm	4
	Z-axis servo motor	Nm
	X-axis guide rail type		Linear Guides
	Z-axis guide rail type		Linear Guides
	X-axis fast forward speed	m/min	18
	Z-axis fast forward speed	m/min	20
Tool holder	Tool holder form		Row knife
	Number of tool positions		4
	Knife square size	mm	20*20
other	Clamping method		Hydraulic clamping
	Cylinder Specifications		Hydraulic hollow 536
	Hydraulic station		Shengquan high performance hydraulic station

---
