China Top Manufacturer CNC Bt Spindle Drilling Milling Tapping Machine for Plate Steel Fabrication Structure Boiler Sheet Hole Processing Industry

Product Description

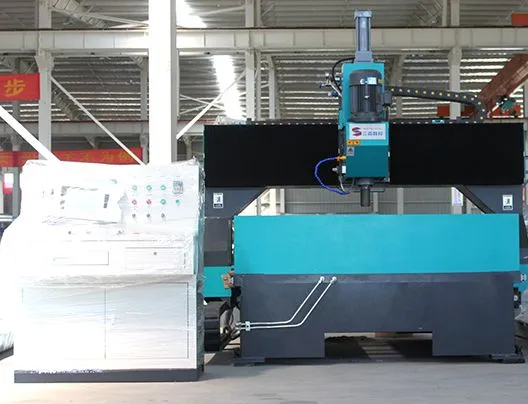

HIGH ACCURACY CNC FLANGE DRILLING MACHINE FOR STEEL TOWER
Product Description
PD series CNC plate drilling machine mainly do the drilling process of the junction plate and base anchor which used widely in steel structure, iron tower, bridge, and machining industries etc., and also used widely for flange drilling process.
THE PRODUCT STRUCTURE FEATURES
1. CNC slid drilling head, can control the depth of hole, have the function of drilling blind hole, expanding hole, and chamfering.
2. PLC control system can assure the drilling positional accuracy
3. The machine have four processing area, 12 hydraulic clamp can clamping four groups of working pieces, can assemble and disassemble the work piece at the same time of drilling
4. LCD display by PLC control system
5. Programme based on windows, Auto CAD , and support lofting software TEKLA
6. Auto chip-removal system, cooling liquid are circular
7. The Key machanical, hydraulic, electronic parts adopts global brand name
8. The whole machine are integrated designed, don't need to lay the foundation

Product Parameters

Model	PD/PCD2016	PD/PCD2016/2	PD/PCD3016	PD/PCD3016/2
Processing scope(mm)	2000×1600	2000×1600	3000×1600	3000×1600
Stack thickness(mm)	100
Spindle number	1	2	1	2
Spindle model	Morse 4 # taper hole
Spindle rotating speed(r/min)	120-560	120-560	120-560	120-560
Feed mode	Hydraulic automatic stroke drilling power head
Feed stroke (mm)	180
Drilling diameter (mm)	φ12 ~ φ50 (optionφ12 ~ Φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)
Main motor power (Kw)	5.5( 7.5)	5.5×2 /7.5×2()	5.5(7.5)	5.5×2/7.5×2(option)
Number of clamping cylinders	12
Clamping force (KN)	7.5
Clamping system	Double side button control of gantry
Hydraulic pump pressure (Mpa)	6

Detailed Photos



Machine body&Worktable
The machine body & Gantry is whole welded by iron, and reinforces theiron where stresses much, it treated by artificial aging after finishing welding, all of these can ensure the stability


Hydraulic feed power head
TAdopting hydraulic infeeding power head,which has high drilling efficiency.


Hydraulic Clamps
It has 4 processing area, 12 hydraulic clamps, accurate positioning, quick loading and unloading of workpiece.


Automatic chip removal
Equips with plate chain type chip conveyor, chip and coolant are collected into conveyor, and transport to cart, very easy to operate


Automatic lubrication system
Equips with auto lubrication system,regularly pumps the lubricating oilinto each and every parts including blocks, ball screws and bearings,avoid manual tedious lubrication work, prolong the usage life of parts
WORKPIECE

Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition. Company Profile
Why Choose Raintech SANS?
CERTIFICATE

International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help, please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

---
