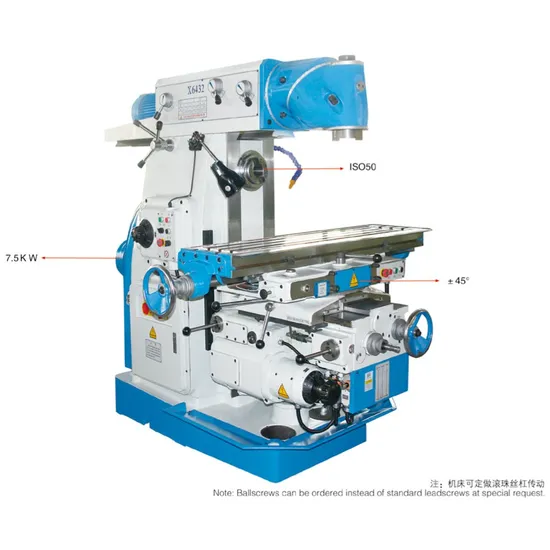

X6432 RAM Milling Machine Machine Tool

Product Description

Product Description
Product Parameters

Specification	Unit	X6432	X6432A
Table size	mm	320x1325	320x1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max transverse vertical travel(manual/auto)	mm	320/300
Max rotary angle		±45°
T Slots(N WD)		3/18/70
Spindle hole taper	mm	7: 24 IS050
Distance of Ho-izontal spindle axis to table surface:	mm	30 ~ 350
Distance of table center to vertical spindle	mm	190-510
Distance of table center to vertical ways of column	mm	470-215
Distance of table center ram	mm	155
Speed steps		(V)12 (H)18
Spindle speed range	r.p m	(V)60-1750 (H)30-1500
Table feed steps		18
Table feed range Longitudinal	mm/min	23.5-1180
Table feed ranqe cross	mm/min	23.5-1180
Table feed range vertical	mm/min	8-394
Table rapid moving speed Longitudinal/cross	mm/min	2300
Table rapid moving speed vertical	mm/min	770
Power of spindle	Kw	(V)4 (H)7.5
Spindle of motor range	r.p.m	1440
Feed motor	Kw	1.5
Feed of motor range	r.p.m	1440
Net Weight	Kg	2900	3000
Overall sizes	mm	2294 x 1770x 1780	2294 x 2050 x 1780
