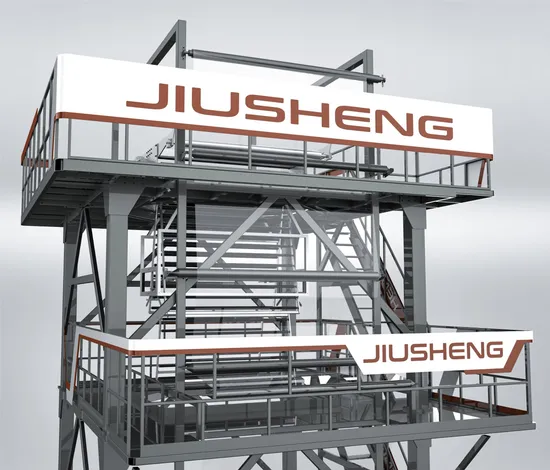

Jiusheng Factory Sale Five-Layer Co-Extrusion Heavy-Duty Film Blowing Machine PE Equipment

Product Description

Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter

Model	SJZGM5-65/55/55/55/65-1600	SJZGM5-75/55/55/55/75-1800
Suitable material	PA,EVOH,LDPE,LLDPE,mLLDPE,TIE
Film layer	5 layers
Film thickness	0.035-0.18mm
Max film width	800-1400mm	900-1600mm
Max output	200-300kg/h	300-400kg/h
Screw diameter	φ65/φ55/φ55/φ55/φ65	φ75/φ55/φ55/φ55/φ75
Screw L/D ratio	32:1	32:1
Die head diameter	φ400mm lBC	φ450mm lBC
Air ring diameter	φ1280mm	φ1480mm
Main motor power	37kw*2 30kw*3	45kw*2 37kw*3
IBC system	P+F probe and IBC system
EPC system	Center or side ultrasonic type
Screen changer	Double station manual quick net change + pressure gauge
Winding method	Surface + center winding
Tension control system	Tension sensor
Overall Dimension (L*W*H)	14500*7000*13500	14500*7500*13500

Process Flow Diagram
Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine
Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.

---
