Fuse 2410 6125 1808 2A 10A 30A 250V SMD Fuse Circuit Breaker

Product Description

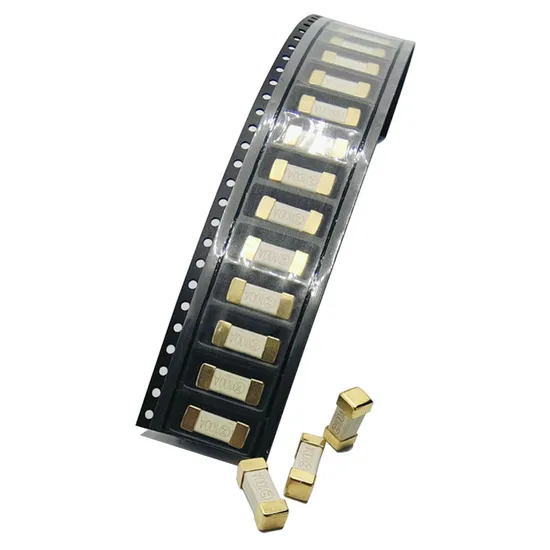

Item	2410 6125 1808 Surface Mount 6.1x2.6x2.6 2410 Ceramic SMD Fuse
Voltage	250V
Aperes	0.08A, 0.1A, 0.2A, 0.25A, 0.3A, 0.315A, 0.375A, 0.4A, 0.5A, 0.6A, 0.63A, 0.7A, 0.75A, 0.8A, 1A, 1.2A, 1.25A, 1.5A, 2A, 2.5A, 3A, 3.15A, 4A, 5A, 6A, 6.3A, 7A
Color	Gold or Sliver
Operating Temperature	-55°C to 125°C
Material	End caps:Au Plated Brass Cap Body materials:Non-Transparent Square Ceramic Tube Fuse element:Cu-Ag Alloy wire
Application	Communication system, computer, industrial controls
Certification	UL cUL
Warranty	1 years
Service	OEM & ODM can be accepted
Packing	1000pcs in 7 inches dia then into paper carton
MOQ	1000 piece
Loading Ports	Guangzhou/Shenzhe

HOW TO CHOOSE SMD FUSE 1. Current Rating
Figure out the normal operating current of your circuit. Then, select a fuse with a rated current that's higher than this value. For example, if your circuit usually has a 2A current, a fuse with a 2.5A or 3A rating might be a good choice. Also, consider if there are any inrush currents (like in circuits with motors). If so, you might need a slow - blow fuse. 2. Fuse Type For circuits with stable currents and no big surges (like digital circuits), use a fast - acting fuse. If your circuit has components that cause momentary current spikes (such as motors or transformers), a slow - blow fuse is better. 3. Size Look at the space on your circuit board. SMD fuses come in different sizes like 0402, 0603, etc. Choose a size that fits well on your board. 4. Voltage Rating Make sure the rated voltage of the fuse is higher than the voltage of your circuit. For example, if your circuit operates at 12V, a fuse with a 15V or higher rating would be suitable. 5. Certification Check if the fuse has the necessary certifications for your application. For example, in electronics for the European market, it's good to have RoHS compliance.

---
