Noodle Cutting Plastic Pelletizing Line

Product Description

Product Description
Greenlandplast Double Stage Noodle Cutting Pelletizing Machine This plastic pelletizing machine is designed for the recycling and granulating/pelletizing of clean and dry waste plastic. It can handle various types and properties of materials, including PE, PP, ABS, PS, PC, PA, PVC, and more.
Equipped with different feeding and cutting methods, this machine can also be used for pelletizing film scraps materials. By installing a forced feeding system, it ensures efficient pelletizing of film scraps.
The machine features a screw feeder or belt conveyor for feeding recycled plastic to the extrusion system. The specially designed screw allows for fast and stable feeding, with excellent wear resistance. The natural exhaust holes and vacuum system effectively drain water from the material.
The extruder is equipped with a cast aluminum or ceramic heater, ensuring durability. Additionally, an automatic hydraulic screen changing system is included, resulting in cleaner and higher quality particles.
Features:
Recycles and pelletizes clean and dry waste plastic
Can handle various types and properties of materials
Equipped with different feeding and cutting methods
Forced feeding system for efficient pelletizing of film scraps
Fast and stable feeding with wear resistance
Natural exhaust holes and vacuum system for effective water drainage
Durable extruder with cast aluminum or ceramic heater
Automatic hydraulic screen changing system for cleaner particles
Available Materials: PE, PP, PS, ABS, PC, crushed granules, and plastic flakes
For more information, please contact Zhangjiagang Greenlandplast Machinery Co., Ltd.
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

Detailed Photos
Loading System: The material is fed to the extrusion system of the Zhangjiagang Greenlandplast Machinery Co., Ltd through either a screw feeder or a belt conveyor. For added convenience, the belt conveyor can be equipped with an optional metal detector. This loading system ensures a smooth and efficient feeding process, allowing for seamless operation and increased productivity.

Quantitative Feeding System
The feeding speed is controlled by an inverter, allowing for adaptation to different material properties and ensuring the extruder operates smoothly.
Equipped with a sensor device, the feeding system synchronizes with the loading system to enable intelligent automatic feeding.
When the material is full, the feeding system stops feeding, and it automatically loads when the material is not full.
Experience efficient and precise feeding with the Quantitative Feeding System from Zhangjiagang Greenlandplast Machinery Co., Ltd. This system is designed to adapt to various material properties, ensuring stable operation of the extruder. With its frequency control feature, the feeding speed can be easily adjusted to meet your specific needs.
Featuring a sensor device, this system offers intelligent automatic feeding. It synchronizes with the loading system, allowing for seamless operation. When the material reaches its maximum capacity, the feeding system stops automatically, preventing any overflow or waste. Conversely, when the material level is low, the system automatically loads more material, ensuring uninterrupted production.
Invest in the Quantitative Feeding System for reliable and efficient feeding in your extrusion process. Trust Zhangjiagang Greenlandplast Machinery Co., Ltd for high-quality machinery solutions.

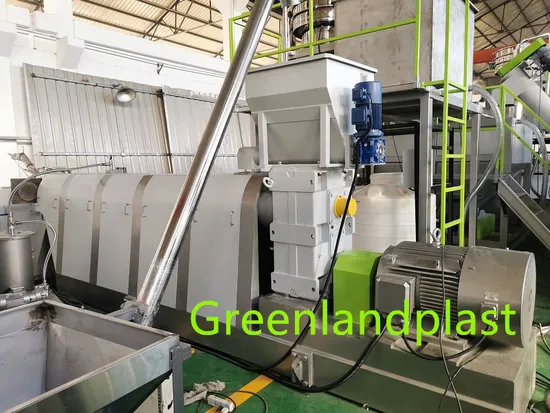

Extrusion System
The screw barrel of the extruder is specially designed for plastic recycling pelletizing. It is made of 38CrMoAl material with nitrided treatment, and the surface of the screw is sprayed with an alloy wear-resistant layer. The barrel is equipped with an exhaust section.
The extruder is equipped with a vacuum exhaust, ensuring high output, excellent dehydration and exhaust effect, and wear resistance.
The heating system adopts either a cast aluminum heater or a ceramic heater. Each heating zone has an independent intelligent temperature control system and is equipped with forced air cooling. This allows for convenient and accurate temperature control, resulting in superior pellet quality.
For more information, please visit Zhangjiagang Greenlandplast Machinery Co., Ltd.
Screen Change Filter System The screen change filter system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to enhance the quality of pellets by filtering out small impurities in the material. It utilizes a plate-type hydraulic automatic screen changer, which is equipped with an automatic pressure alarm device for added convenience.
For customers with specific requirements, we also offer the option to equip the system with a column hydraulic screen changer or a non-net screen changer. These options not only improve the filtering effect but also make the operation more user-friendly.
Pelletizer Cutting System At Zhangjiagang Greenlandplast Machinery Co., Ltd, we offer a versatile pelletizer cutting system that caters to the specific needs of our customers. Our cutting system is designed to efficiently process various materials, ensuring optimal results.
With our noodle cutting option, you can easily cut materials with special properties. Alternatively, our water-ring cutting option provides another effective method for pelletizing. We understand that different customers have different preferences, which is why we also offer automatic strand-stretching cutting pelletizing and underwater pelletizing systems.
Choose our pelletizer cutting system for:
Efficient and precise cutting of materials
Flexibility to adapt to various material properties
Customizable options to meet customer preferences
Trust Zhangjiagang Greenlandplast Machinery Co., Ltd for all your pelletizer cutting system needs. Contact us today to learn more about our high-quality products.
Vibration Dewatering System - Product Description
Vibration Dewatering System The Vibration Dewatering System by Zhangjiagang Greenlandplast Machinery Co., Ltd is a highly efficient method for dewatering and drying particles. With its innovative design, this system offers significant benefits for various industries.
Features:
Power-saving: The Vibration Dewatering System is equipped with a dewatering fan that helps save power consumption, making it an energy-efficient solution.
Low noise: This system operates with minimal noise, ensuring a peaceful working environment.
Excellent particle dewatering: The advanced technology used in this system ensures exceptional particle dewatering, resulting in improved efficiency.
Drying effect: The Vibration Dewatering System not only dewater particles but also provides an effective drying effect, reducing moisture content.
About Zhangjiagang Greenlandplast Machinery Co., Ltd: Zhangjiagang Greenlandplast Machinery Co., Ltd is a reputable company known for its expertise in manufacturing high-quality machinery. With a focus on innovation and customer satisfaction, they strive to deliver reliable and efficient solutions for various industrial needs.

Air Conveyor & Hopper Storage The Air Conveyor & Hopper Storage system, designed and manufactured by Zhangjiagang Greenlandplast Machinery Co., Ltd, is an essential component for transferring pellets to the storage tank. Made with high-quality stainless steel, both the air conveyor pipe and the tank ensure durability and longevity.
To provide a noise-free operation, the surface of the air conveyor pipe is equipped with sound-absorbing cotton, significantly reducing noise levels and creating a more comfortable working environment.
With the Air Conveyor & Hopper Storage system, you can efficiently and seamlessly transfer pellets, ensuring a smooth workflow and maximizing productivity.
