CNC and Conventional Vertical Lathe Machine/Vtl Vertical Lathe

Product Description

cnc and conventional vertical lathe machine/vtl vertical lathe

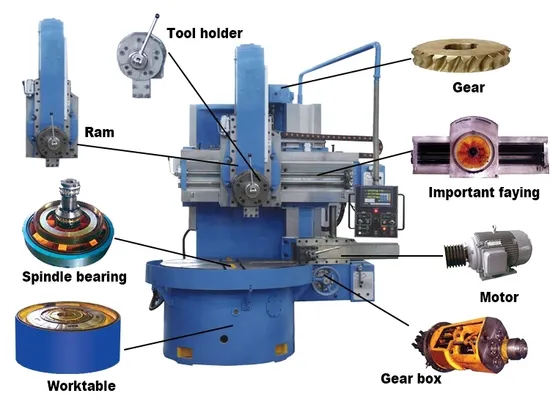

Heavy Duty large vertical turret lathe Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing. Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision. Machine tool electric using domestic brand-name products, high reliability. Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.

Name	Unit	CK518
Max. turning diameter of vertical tool post	mm	800
Max. turning diameter of workpiece	mm	700
Diameter of worktable	mm	800
The artifact max. height	mm	800
Max. weight of the workpiece	T	1.5T
Number of shift stages of work table	Stepless	Stepless
Variable speed range of work table	rpm	30-260
Feed level	Stepless	Stepless
Feed range	mm/min	0.25-90
Tool post stroke level	mm	500
Tool post stroke Vertical	mm	450
Beam tirp	mm	500
Lateral movement speed of tool post	mm/min	2000
Longitudinal moving speed of tool post	mm/min	1500
Max. turning angle of tool post	°	±30°
Tool square size (width×height)	mm	30×40
Main motor power	kw	11
Machine size (length×width×height)	mm	1700×2100×2600
Machine weight	(about)kg	5000

---
