Competitive Good Price Pine Straw Pellet Forming Machine

Product Description

Competitive Good Price Pine Straw Pellet Forming Machine
1. Raw Materials:

(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. Competitive Good Price Pine Straw Pellet Forming Machine Main Data:

Model	Main Power(kw)	Capacity(kg/h)	Feeder Power(kw)	Force feeder power(kw)	Die Diameter(mm)
MZLH35	55	400-600	1.1	1.1	350
MZLH420	90	1000-1200	1.5	1.5	420
MZLH508	110	1500-2000	1.5	1.5	508
MZLH558	132	2000-2500	3	2.2	558
MZLH678	185	3000-3500	3	2.2	678
MZLH768	220	3500-4000	3	3	768

3. Competitive Good Price Pine Straw Pellet Forming Machine More photos:
4. Competitive Good Price Pine Straw Pellet Forming Machine lubrication machine :
5. Inner Photos :
6. Machine In Factory Delivery Photos:

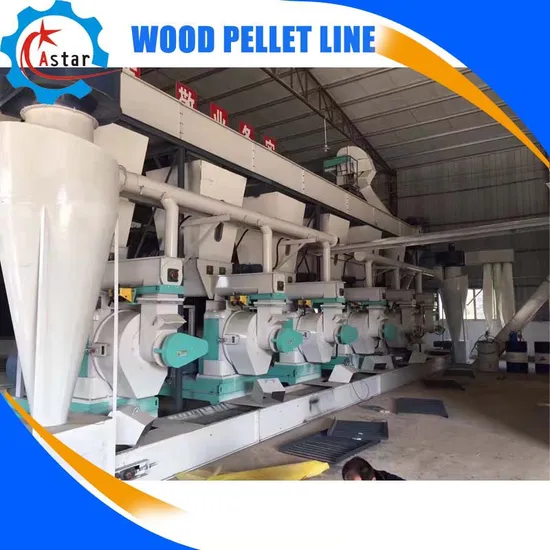

7. Wood Pellet Line In Customer Factory Site:
Any more information you need Competitive Good Price Pine Straw Pellet Forming Machine, please feel free to contact with us.

Mrs Winni
Chongqing Qiaoxing Machinery & Equipment Company
Website: qiaoxingmachinery.en.made-in-china.com
Add: 4-6-88, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China

---
