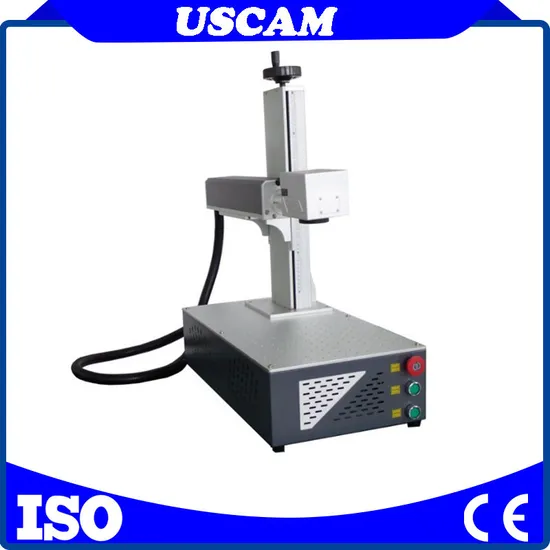

CNC Manufacturer Mini Portable Fiber Laser Marking Machine for Metal

Product Description

Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. FurthermoreFiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble -free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
Technical Parameter

Item Name	Technical Parameter
Model	USJ- 20W	USJ-30W	USJ-50W/100W
Laser power	20W	30W	50W/100W
Laser wavelength	1064nm
Laser type	Fiberlaser source
Max Pulse Energy	0.5m J
Repeat frequency	1KHz-1000KHz
Pulse width	6-250 ns
Marking depth	0.01-0.5mm
Marking area	110*110mm/175*175mm/200*200mm
Rated power consumption	500W	800W	1200W
Operating voltage	110V- 240V/50-60 Hz/15A
Cooling	Air Cooling
Packing size	770*470*700 mm (L*W*H)
Gross weight	60kg KG
Package	Standard export wooden case

Parameter of fiber laser source
Pulsed fiber laser	20W QB	30W QB	50w QB
Wavelength(nm)	1060~1085	1060~1085	1060~1085
Polarization	Random	Random	Random
Optical isolator	Yes	Yes	Yes
Nominal average output power (W)	≥20	≥30	≥50
Single pulse energy (mJ) @20kHz	1	1@30kHz	1@50kHz
Beam quality(M2)	<1.8	<1.8	<1.6
Beam Diameter(mm)	6~8	6~8	6~8
Pulse duration(ns)@20kHz	<120	<120@30kHz	90-150@50kHz
Pulse repetition rate(kHz)	20 - 60	30 - 60	50-100
Output Power Tunability(%)	10-100	10-100	10-100
Output Fiber Cable length(m)	2.0	2.0	2.0
Working voltage(VDC)	24±1	24±1	24±1
Power consumption(20ºC)(W)	200	300	340
Cooling	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled
Dimension W×D×H(mm)	215×286×95	215×286×95	260×391×120
Operating temperature	0ºC~40ºC
Store temperature	-10ºC~60ºC
humidity	30%~85%

Application & Sample Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Parts of fiber laser marking machine
Packing and Shipping
Welcome to our factory
Get more information, please feel free contact Grace: export01 at uscamcnc com. My pleasure to help you. :):)

---
