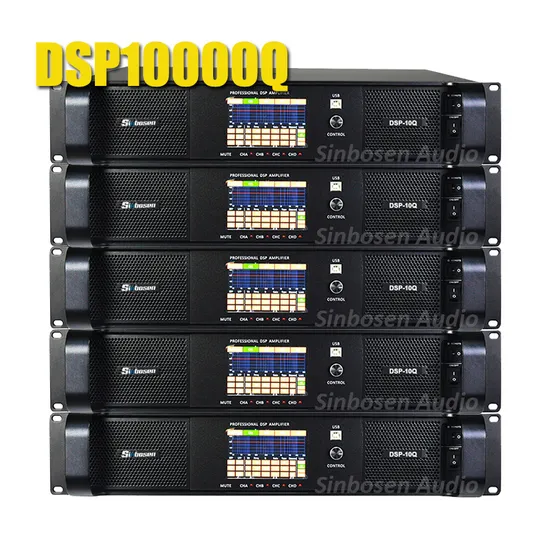

Sinbosen Digital DSP Amplifier DSP10000q Professional DSP Amplifier Board for Karaoke Stage

Product Description

Sinbosen digital dsp amplifier DSP10000Q professional dsp amplifier board for karaoke stage

Technical Parameters	DSP10000Q
8 ohm Stereo Power (RMS)	1300WX4
4 ohm Stereo Power (RMS)	2100WX4
8 ohm Bridged Power (RMS)	4200WX2
4 ohm Bridged Power (RMS)	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω):	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W:	<0.1%
Signal-to-Noise Ratio:	>112 dBA
Channel separation (Crosstalk) at 1 kHz :	>70 dB
Input Connectors (per channel):	3 pin XLR, electronically balanced
Output Connectors (per channel):	Binding Posts 2-pole
Class:	TD
TourClass Protection:	ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal:	180-240 V / 90-130 V selectable
Voltage Gain(dB):	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance:	20 kOhm
Level adjustment (per ch.):	Front panel potentiometer, 31 positions detented from -inf to 0 dB

Software control	Multiple power amplifier controls	Touch screen
Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect	DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor	One PC can independent control serveral dsp amplifier at the same time

FAQ 1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!

2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!

3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal; 30% deposit before production, 70% balance before shipment!

4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!

5.How long is your guarantee period of products?
A:3 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!

6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!

---
