Zk5480/40 CNC Gantry Type Drilling Machine/ Customerized Machine

Product Description

Product Description
APPLICATION
ZK54 series CNC gantry type multiple-axis milling and drilling machine combines multiple functions with high accuracy, high efficiency and intelligent. Machine is of fixed gantry structure, with high accuracy rotary table. Besides drilling on a plane, with indexing table and right angle head the machine can carry out side drilling.
Product Parameters

Item	Unit	ZK5480/40	ZK5480/50	ZK5480/60
Table diameter	mm	3600	4500	5500
Max. job swing diameter	mm	4000	5000	6000
Table unit loading capacity	t	30	30	30
Distance between columns	mm	4300	5300	6300
QTY of drilling and milling axis		2×1	2×1	2×1
Max. distance from drilling and milling spindle end to table surface	mm	750	750	750
Ram vertical travel	mm	500	500	500
Power of drilling and milling spindle	kW	41	41	41
Highest speed of drilling and milling spindle	r/min	3500	3500	3500
Max. rated torque of drilling and milling spindle	Nm	1200	1200	1200
Max. drilling diameter	mm	80	80	80

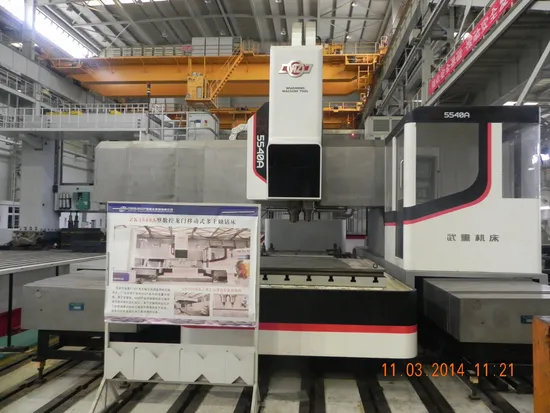

Detailed Photos
The machine has two spindles with separate independent drive and independent feeding and flexible in control. Machine adopts SIEMENS CNC system. Main drive adopts AC servo motor with related speed adjusting and drive. Each feeding axis can adopt optical scale for closed loop control. The machine can carry out milling. ATC can be adopted: attachment head can be adopted.
Workshop


Packaging & Shipping

---
