Qk1328 Automatic Intelligent CNC Pipe Threading Lathe for Multi Form Processing

Product Description

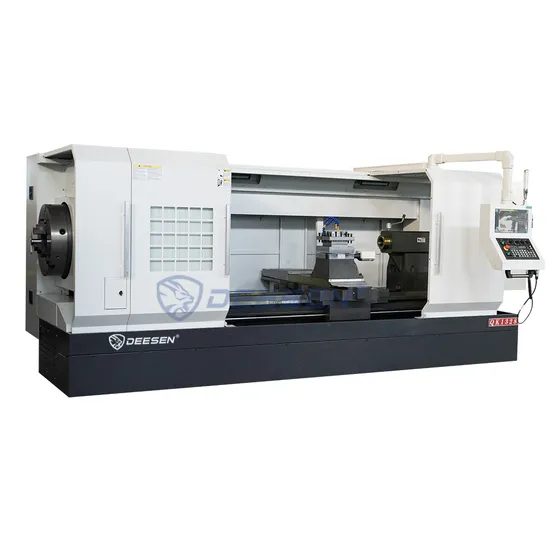

QK1328 Automatic intelligent CNC Pipe Threading Lathe for Multi form processing
Product Description
The main performance characteristics: Big spindle bore and double chuck allows clamp and process big diameter pipes; Integral machine bed adopts high strength iron to relize high rigidity and precision; Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance; Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Application: QK1328 CNC Heavy Duty Oil Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard Accessories: Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories: CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Product Parameters
Product main technical specifications:

ITEMS		UNIT	QK1327	QK1328
Capacity	Swing over bed	mm	1000	1000
	Swing over cross slide	mm	610	610
	Distance between centers	mm	1000/1500/2000/3000	1000/1500/2000/3000
	Pipe threading range	mm	130-270	130-280
	Width of bed way	mm	755	755
	Max.load capacity	T	5	6
Spindle	Spindle bore	mm	280	280
	Spindle speed steps	-	Step-less	VF. 4 steps
	Spindle speed range	rpm	0-450	0-450
	Chuck size	mm	800	800
	Chuck type	-	4-jaw manual	4-jaw manual
Turret	Turret type	-	NC turret 4 position	NC turret 4 position
	Tool shank size	mm	40x40	40x40
Carriage	X axis travel	mm	500	520
	Z axis travel	mm	1250	1250/2750
	X axis rapid traverse speed	mm/min	4000	4000
	Z axis rapid traverse speed	mm/min	4000	4000
Tailstock	Tailstock quill diameter	mm	140	160
	Tailstock quill taper	-	MT6	MT6
	Tailstock quill travel	mm	300	300
Motors	Main spindle motor	kW	Servo 22	Servo 22
	Coolant pump motor	kW	0.125	0.125
Accuracy	Positioning accuracy	mm	0.020	0.020
	Repositioning accuracy	mm	0.010	0.010
Dimensions	Width x Height	mm	2200x2150	2200x2150
	Length	mm	4800	4950/6450
Weight	Net weight	T	11.0	12.0

Detailed Photos
HARDENED GUIDE RAIL
Super audio hardening guide rail,
high hardness, high precision.
CHUCK
Standard electric compound
four jaw chuck, double chuck
workpiece clamping more stable
TOOL POST/TURRET
Standard with 4 staion electrictool post ,6/8 station electric turret is optional.

CNC CONTROLSYSTEM
Standard: GSK , Optional: Siemens, Fanuc, Syntec, Mitsubishi and others.
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
TURRET
Standard with 4 station electric tool turret, optional 6/8/12 stationelectric tool turret. Quick tool change speed, accurate tool change.

Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise. In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing. In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%. The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing. In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services. Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
