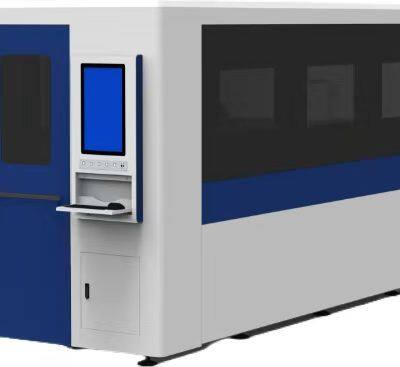

HBN FB Series High-Power Fiber Laser Cutting Machine - Technical Specification
Industrial-Grade Cutting Performance for Precision Metal Fabrication
Overview
The HBN FB Series represents the pinnacle of fiber laser cutting technology, combining German-engineered optical components with robust Chinese manufacturing to deliver exceptional cutting precision across all industrial metal processing applications. Our gantry-style cutting systems provide unmatched stability and speed for high-volume production environments.
Key Advantages
Premium Imported Components: Featuring German laser sources and high-precision reducers
Versatile Material Compatibility: Cuts stainless steel, carbon steel, aluminum, copper, brass and alloys
Heavy-Duty Construction: High-strength aluminum alloy beam with 4000KG max load capacity
Maintenance-Free Operation: Fiber optic transmission eliminates optical alignment needs
Smart Cutting Optimization: Automatic nozzle changing and capacitive height control (optional)
Technical Specifications
ModelQH-3015 FBQH-4020 FBQH-6020 FBQH-6025 FBQH-8020 FBQH-8025 FB
| Work Area | 3000×1500mm | 4000×2000mm | 6000×2000mm | 6000×2500mm | 8000×2000mm | 8000×2500mm |
| Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Repeat Accuracy | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m |
| Max Speed | 200m/min | 200m/min | 180m/min | 140m/min | 160m/min | 140m/min |
| Table Load | 1000KG | 1600KG | 2400KG | 3000KG | 3500KG | 4000KG |
| Power Supply | 380V±10% 50Hz | 380V±10% 50Hz | 380V±10% 50Hz | 380V±10% 50Hz | 380V±10% 50Hz | 380V±10% 50Hz |
Cutting Performance Metrics
Stainless Steel: Up to 25mm clean cutting (varies by power)
Carbon Steel: Up to 30mm precision cutting
Aluminum Alloys: Up to 20mm smooth cutting
Brass/Copper: Up to 15mm fine cutting
Standard Features
◈ Automatic lubrication system
◈ Industrial-grade servo motors
◈ Dual-camera collision protection
◈ IPG or Raycus laser source options
◈ 7-inch touchscreen control panel
◈ Air/oxygen/nitrogen cutting capability
Industry Applications
✔ Automotive: Chassis components, body panels
✔ Aerospace: Structural components, engine parts
✔ Construction: Steel frames, architectural elements
✔ Manufacturing: Machinery parts, tooling components
✔ Energy: Wind turbine parts, solar mounting systems
Optional Upgrades
Automatic loading/unloading systems
6kW/8kW/12kW laser power options
Tube cutting attachment (+$18,500)
Fume extraction systems
Remote monitoring package
>>
