US$40.00-500.00
|
1 Piece
(MOQ)
|
Basic Info.
Counter Instructions
Digital
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Transport Package
Pallets
Specification
CE approval
Production Capacity
500, 000/Year
Product Description

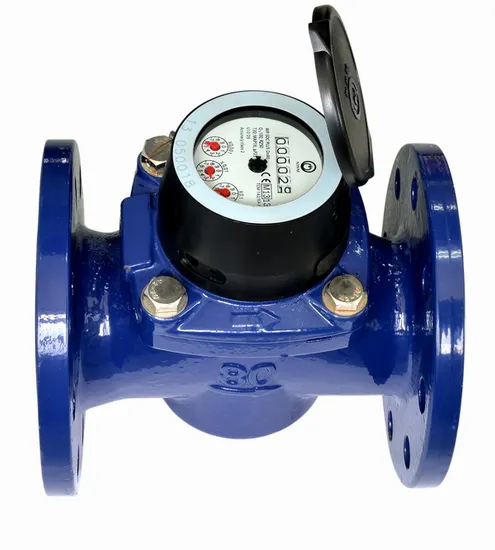

WP5D is a high sensitivity flanged mechanical turbine water meter have the size from DN50 to DN500 (2 inch to 20 inch), designed and manufactured by NWM, it is a removable element woltman water meter for industrial and irrigation application.
FEATURES:
Extended low and high flow measuring range
Low pressure loss characteristics, less than 0.01 MPA
High accuracy, achieve R200 to R400; (Class C)
Robust shroud and copper can register for clear readability
Measurement of cold water up to 50ºC;
Pattern approved removable measuring element;
Long working life and optimum accuracy
Standard compliance:
*ISO4064: 2005/OIML R49
Working conditions:
*Temperature: T50 or T30
*Pressure: ≤ 1.6MPa
Options:
*Flange Connections: DIN, PN16 /10, ANSI 125/ 150lb
*Register: 6-digital Roller+2 Pointer +Semi window counter reading in Cubic meters
*Copper can register
| Size | mm | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| R | Q3/Q1 | 250 | 250 | 250 | 250 | 200 | 200 | 160 | 160 | 160 |
| Q4 | m 3 /h | 78.8 | 125 | 200 | 500 | 787.5 | 1250 | 2000 | 3125 | 5000 |
| Q3 | m 3 /h | 63 | 100 | 160 | 400 | 630 | 1000 | 1600 | 2500 | 4000 |
| Q2 | m 3 /h | 0.4 | 0.63 | 1 | 2.56 | 5 | 8 | 16 | 25 | 40 |
| Q1 | m 3 /h | 0.25 | 0.4 | 0.63 | 1.6 | 3.2 | 5 | 10 | 15.6 | 25 |
| Max. Reading | m 3 | 999, 999, 999 | 9999999, 99 | 99999999, 9 |
| Min. Reading | m 3 | 0, 0005 | 0, 005 | 0, 05 |
| Max. Temperate | & ordm; C | T30 or T50 |
| Max. Temperate | & ordm; C | T30 or T50 |
>>
