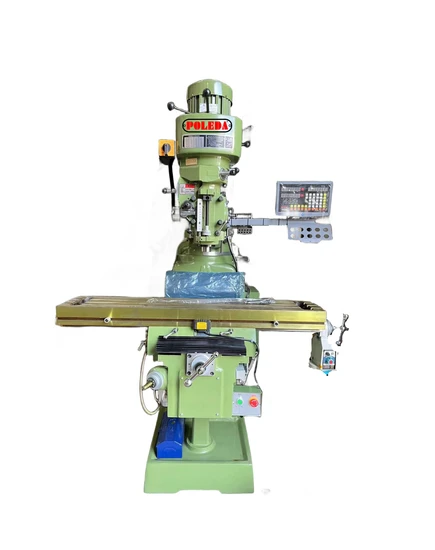

Poleda 5K Universal Milling Machine Vertical Turret Rocker Design

Product Description

Experience unparalleled precision with our 5M Vertical Metal Turret Milling Machine. As industry leaders in universal milling machines from China, we pride ourselves on our expertise. With us, excellence is a continuous journey-there's always room for improvement. Introducing the 5M Vertical Metal Turret Milling Machine: the epitome of precision and reliability in the world of milling.
As the most professional manufacturers in China, we offer universal milling machines that stand unmatched in quality and performance.
For us, the pursuit of perfection is never-ending. There is no best-only a relentless drive to be better.
Product Description
Product Parameters
Product Introduction
The turret milling machine, often referred to as the rocker arm milling machine, offers unparalleled versatility. This compact machine combines a small footprint with high flexibility. The milling head rotates 90 degrees in both directions and 45 degrees front and back. Its rocker arm extends and rotates 360 degrees horizontally, significantly expanding the machine's effective working range.
Construction
Crafted from premium-grade cast iron, the body of the universal radial milling machine boasts exceptional precision and longevity, thanks to artificial aging treatment. The lifting platform features rectangular guide rails with extensive contact surfaces and rigid feet. Enhanced through high-frequency treatment and fine grinding, the slide's plastination ensures superior motion accuracy and extended life. The spindle, made from chrome-molybdenum alloy and equipped with precision angular contact bearings, undergoes tempering and fine grinding, delivering robust cutting force and high precision.
Applications
The turret milling machine is a lightweight, versatile metal cutting tool that offers both vertical and horizontal milling capabilities. Ideal for medium and small parts, it efficiently mills flat surfaces, inclines, grooves, and splines. This machine is extensively used in machining, mold making, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine
Constructed from Mihanna cast iron, the machine features outstanding rigidity, stability, and resistance to deformation.
The main spindle, crafted from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding. Combined with precision bearings, it delivers formidable cutting force and exceptional accuracy.
The milling head gear box, made of cast iron, offers superior rigidity and minimal deformation. Its heavier weight ensures more accurate cutting and extended durability.
The three-axis screw cap, crafted from advanced phosphorus bronze, offers excellent wear resistance and a prolonged service life.
The XY axis slide benefits from high wave heat treatment, enhancing wear resistance and longevity. Additionally, the imported wear-resistant plate attached to the XY axis interface ensures smooth operation and durability.
The lubrication system guarantees uniform oil distribution, ensuring smooth slide operation.
The machine weighs 100 kg more than similar products, enhancing its stability and performance.
Equipped with a powerful 5hp motor and a high-precision NT40 spindle, this machine is perfect for large parts and heavy-duty cutting applications.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac

---
