Automatic Flatbed Die Cutting Machine for Self Adhesive Label

Product Description

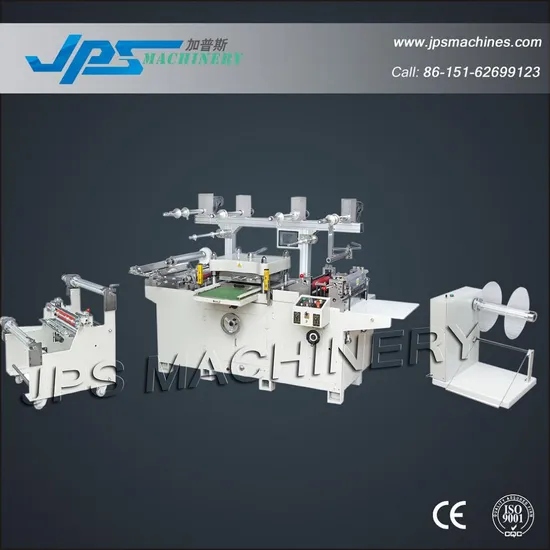

JPS-350B Automatic flatbed die cutting machine for self adhesive labels
Main Technical Parameter:

Model	JPS-350B	JPS-420B
Cutting speed	20-200 (t/m)	20-200 (t/m)
Max unwinding diameter	450mm	450mm
Max web width	320mm	420mm
Max mould cutting area	320x380mm	420x420mm
Orientation accuracy	±0.10mm	±0.10mm
Motor power	3kw	4kw
Power voltage	220v±10%	380v±10%
Machine weight	2200kg	2800kg
Measurement	2600x950x1400mm	2600x1050x1800mm

Feature:
The machine enjoys multi-layer sticking ,partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling, all of them are completed by the computer control by one turn.
Charateritics:
1. The machine enjoys multi-layer sticking, partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling
2. All of them are completed by the computer control by one turn.
Applicable Material:
1. Sticky production: Diversified electronic, electrical appliance, special mobile phone rubber cushion, silicon rubber cushion, magic tape, electric conductive tape, powerful double side adhesive, SUNEAST 3M, Sony special binding products.
2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge, dust net and non-woven fabric
3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable retardant EVA, high foam
4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge sheath, pearl cotton sheath
5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric)
Optional Configurations:
1. Hot stamping
2. Punching
3. Laminating
4. Adding conveyor belt
5. Full-cut for die cutting
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS-350B Automatic flatbed die cutting machine -------- Configuration:
JPS-350B Automatic flatbed die cutting machine -------- Version:
JPS-350B Automatic flatbed die cutting machine -------- Die Mold
JPS-350B Automatic flatbed die cutting machine -------- application:
