Diaper Machine

Product Description

MACHINE DETAILS

Design Speed	300pcs/min
Stable Work Speed	200-250pcs/min
Power Supply	380V±5%,50HZ(3 phase,4lines,ground-in)
Installation	450KW(excluding air compressor,glue machine)
Power Used	500KW
Air Compressor	0.6-0.8Mpa
Product weight Tolerance	±5
Qualified Rate	≥96%(excluding glue,splice,raw jointer defectives)
Efficiency	≥85%
Machine Size(L*W*H)	32m*10m*6.5m
Working Size(L*W*H)	45m*12m*8m
Machine Weigh	85Tons
Machine Color	Rich White(can be designed as customer's demand)
Machine Direction	Face the machine from left to right (can be designed as customer's demand)

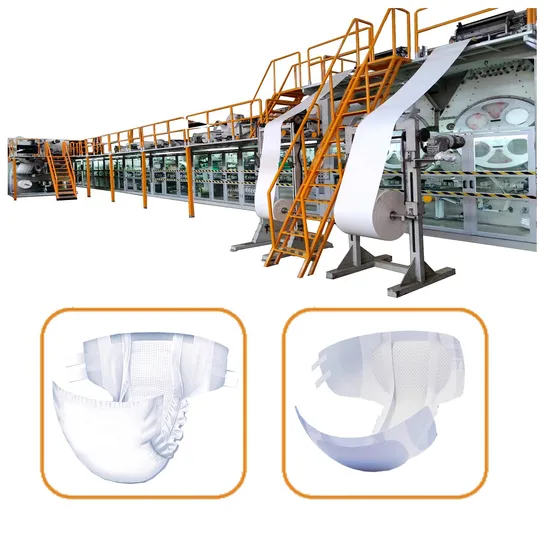

The full automatic servo adult diaper making machine production line boasts a remarkable efficiency rate of ≥85%, with a design speed capable of producing 300 pcs per minute and a stable work speed that can reach 200-250 pcs per minute. Additionally, the scrap rate is relatively low, at less than or equal to 4% (excluding scrap caused by hot melt, materials splicing, or joint). The product structure is Leg cuff hydrophobic nonwoven, Top sheet hydrophobic nonwoven, ADL, Cotton core (SAP mixed), Side tape, Waistband, Frontal tape, and Back sheet. And the general product sizes it produces are M (680*450mm), L (800*650mm), and XL (950*760mm).
The metal material requirement is higher for core parts, so we use new materials at home and abroad, to establish our standard heat treatment processing, and also use hardness testing, to improve the hardness of spare parts and increase resistance.And calibrating the machine inside our factory, we will then request the client in our facility to confirm the machine's performance. Only when our client approves of the machine will we arrange the delivery. After the customized adult diaper production line has reached the client's destination, technicians will be assigned to the site, taking care of the assembly and calibration.
We have a good team to provide service for the machine production line and raw material suggestions, apart from that, we have a strong technician team to do installation service and after-service for you.

MACHINE FEATURES

MACHINE PRODUCTION WORKSHOP

FINISHED PRODUCTS
I SHAPE ADULT DIAPER
OUR ADVANTSGES

---
