Friend Design 50kg-200kg Output Customized Pet PE EVA Modified Pellet Making Parellel Twin Screw Extruder Pelletizing Line

Product Description

Product Description
PET PE PLA modification and composite granulation machine adopts a twin screw extruder structure, which has the characteristics of low shear and dispersion effect.
PET PE PLA modified granulator production line mainly includes
1. quantitative feeding system
2. Parellel twin screw extruder
3. mold
4.cooling water tank
5. fan
6. granulator/pelletizer .
The side feeding system can be configured according to the customer's raw material requirements.

Product Parameters

Model	Screw Dia.	Screw speed(r/min)	Main motor power (kw)	L/D	Capacity (kg/h)
SJH-35	35.6	600	11/15	32-48	40-100
SJH-50	50.5	500/600	36/45	32-48	50-200
SJH-65	62.4	400/500	55/75	32-48	150-375
SJH-75A	71.2	400/500	75/110	32-48	200-500
SJH-75B	75	300/500	110/140	32-48	200-600
SJH-95	91	400	220/250	32-40	800-1000

Detailed Photos

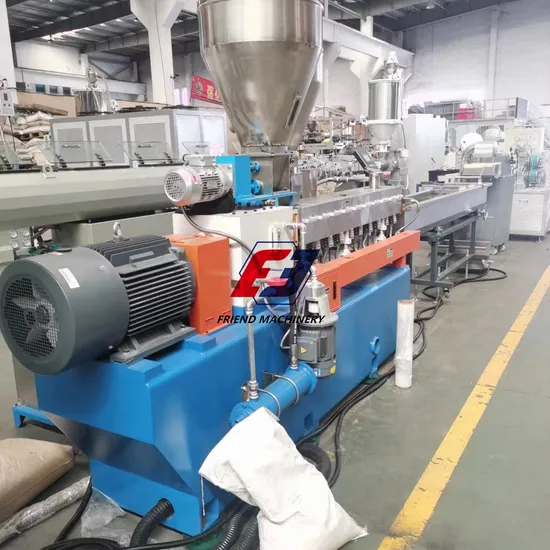

Parellel twin screw extruder
Parallel twin screw extruders are widely used in the filling, blending, modification, reinforcement of rubber and plastic and engineering resins, as well as the devolatilization treatment of chlorinated polypropylene and high water absorbent resins; Extrusion of degradable masterbatch, polyamide condensation polymerization, and polyurethane addition reaction; Granulation of carbon powder and magnetic powder, preparation of insulation and sheath materials for cables, low smoke and low halogen flame-retardant PVC cable materials, and various silane crosslinking materials, etc
Water cooling tank
It is used for cooling plastic strand line from extruder
Fan and pelletizer
For removing water from plastics and make strand to pellets.
Final product
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: If I need more information, how to contact you?
Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine?
We send detailed machine quotation to you, if you are satisfied, we will make Proforma invoice for you, payment terms: 30% deposit, after machine testing good, 70% before shipment.
Q3: What about warrenty?
In some countries, we have agent and one year warrenty.
Q4: How can I believe your factory and company?
You are welcomed to ask authority to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machines technical improvements, we will inform clients.
Q6:Where is your factory located?
Our factory is in Zhangjiagang City which is nearby shanghai port, about 2 hours car driving, if you want to visit our factory, we can pick you up from airport or train station.

---
