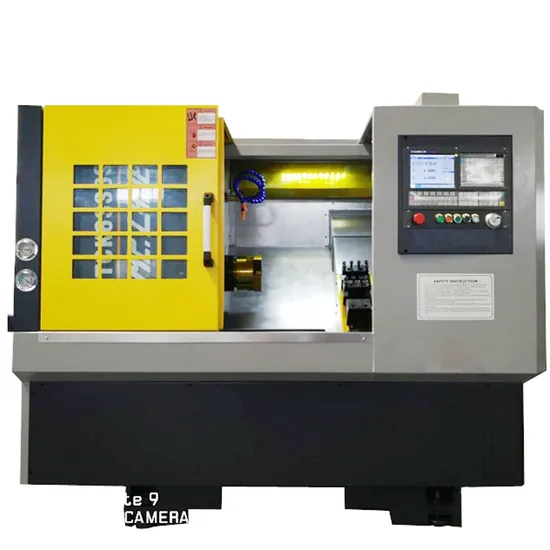

Tck6336 Tck6340 for Turning Auto Parts Horizontal Slant Bed Turret CNC Lathe Machine

Product Description

High Precision Metal CNC Turning Center Slant Bed CNC Lathe
High Precision Metal CNC Turning Center Slant Bed CNC Lathe Application:
High Precision Metal CNC Turning Center Slant Bed CNC Lathe is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
High Precision Metal CNC Turning Center Slant Bed CNC Lathe Features: 1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
High Precision Metal CNC Turning Center Slant Bed CNC LatheTechnical Parameter :

Model	TCK6336
Max swing over bed	390mm
Swing over cross slide	130mm
Max processing length	200mm
X/Z axis travel	400/300mm
Spindle unit	140mm
Spindle nose	A2-5
Spindle bore	48/56mm
Bar capacity	40/45mm
Max spindle speed	4000/3500mm
Chuck size	6/8''
Spindle motor	3.7/kw
X/Z axis repeatability	+0.003mm
X/Z axis feed motor torque	6/6
X/Z rapid traverse	18/15
Cutting tool shape size	20x20
Guide form	45 degree oblique track
Total power capacity	9
Machine size	2200x1530x1780mm
Weight	2200kg

High Precision Metal CNC Turning Center Slant Bed CNC Lathe Details:
High Precision Metal CNC Turning Center Slant Bed CNC Lathe Real Picture In Woekshop:
Customer visit
High Precision Metal CNC Turning Center Slant Bed CNC Lathe For Delivery
Using standard export plywood package to delivery.
Any questions of the High Precision Metal CNC Turning Center Slant Bed CNC Lathe. Pls feel free to contact me: mobile +8613346326288

---
