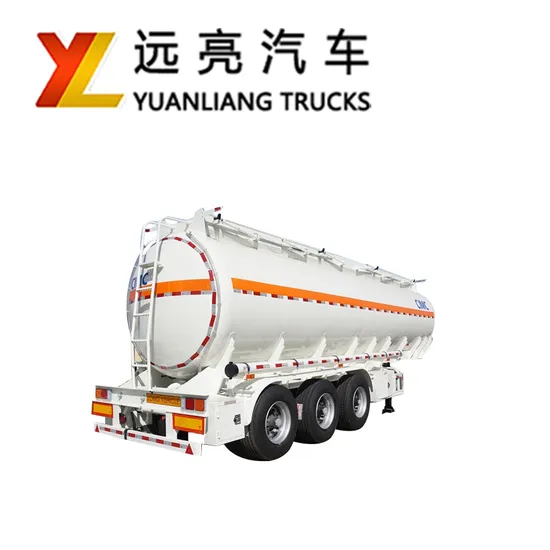

| 1. Total capacity of tank: 46 cubic meters effective volume of tank: 43.84 cubic meters; 2. The tank body is a two-section cylinder structure, Tank body external dimensions: 11,500 mm long, OD 2385 mm (rear), OD 2055 mm (front), Size of optional tank (mm): long long shaft / short shaft: 115002160 / 1910; 3. Type of dangerous goods transport vehicles: FL-type vehicles, Maximum density of the quasi-transport medium: 760 kg / m 3; The car uses an air suspension, Adopt radial tires; 4, optional shoulder guard structure type, profile lamp bracket structure type, downpipe structure, whether or no ladder structure, hose box structure type, the box on the left and right side between the rear axle and the rear bumper for the toolbox, The toolbox is optional structure type and length, after the protection area appearance; The right box of the vehicle driving direction between the front axle and the support leg is the unloading box, The optional structural type and length of the unloading box; The left box of the vehicle driving direction between the front axle and the leg is the toolbox, The toolbox has an optional structure type and length; Option traction pin plate structure type, roadblock bracket structure type, lamp frame structure type, anti-skid support, leg seat structure type, saddle structure type, gas control box installation position, double release valve installation position, air storage cylinder bracket structure type, pipe installation structure type, fire extinguisher installation position, fender structure; Tail diamond logo and speed limit plate installation mode, the appearance of the front and rear area; Appearance of the optional tank body; 5. ABS Model: XH-GQ4S2M-E01;4005000880; K068353XXX; EBS Model number: 4801020640; 6. Side protection device material: 5052, Connection mode: bolted connection; Selected rear lower guard material: Q235, Connection mode: bolt connection, Section size: 150,100 mm, 490 mm away from the ground height; 7, use the traction car suitable for traction dangerous goods transport semi-trailer; 8. The preparation mass of optional heavy suspension is 6680 kg, Rated load mass is 33,320 kg; 9. When optional 1800mm, The complete vehicle length is 12,170 mm. |
