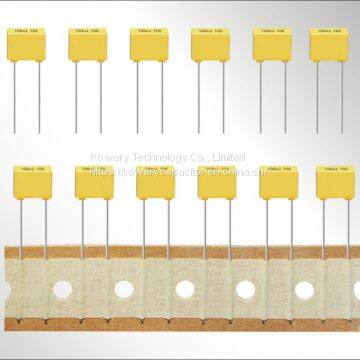

| Features | Metallized polyester film, stacked construction. |
| Plastic case (UL94 V-0) , Epoxy resin sealing |
| High du/dt ability. |
| Applications | By-passing, blocking, coupling, decoupling. |
| Pulse, logic, timing, oscillator circuits. |
| Invert for LCD monitors, automotive DC motor suppression. |
| Specifications | REFERENCE STANDARD: IEC 60384-2 |
| Climatic Category: 55/125/56 |
| Rated Temperature: 85°C |
| OPERATING TEMPERATURE: -55°C - +125°C (+85°C to +125°C: decreasing factor 1.25% per °C for UR) |
| CAPACITANCE RANGE: 0.0010µF ~ 2.2µF |
| CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M) |
| RATED VOLTAGE: 50/63VDC, 100VDC, 250VDC, 400VDC, 500VDC, 630VDC, 700VDC |
| Test Voltage: 1.4UR for 5 sec. |
| DISSIPATION FACTOR: ≤1.0% Measured at 1KHz and 20°C |
| INSULATION RESISTANCE: UR>100V: ≥30 000MΩ, for CN≤0.33µF |
| ≥10 000s, for CN>0.33µF Measured at 20°C, 100V and 1 min. |
| UR≤100V: ≥15 000MΩ, for CN≤0.33µF |
| ≥5 000s, for 0.33µF˂CN≤1µF Measured at 20°C, 10V and 1 min |
| ≥1 000s, for CN>1µF |
| Notes | Customization for special specification and requirement is available. |
