Good Price Automatic Two-Heads Spiral Paper Core Tube Making Machine

Product Description

One-stop solutions for paper convering machinery.
Cutomers's satisfactory is the first position.
Chinese Top Grade Two/Four Heads Paper Core Tube Making Machine

FUNCTION DESCRIPTION:
The design concept is simple, compact and stable.
USING INDUSTRY
Chemical fiber paper tube, industrial paper tube, film paper tube and other medium-sized intuitive production.
FEATURES:
1. The main body is made of thick and heavy steel plate after CNC cutting and welding. The frame is stable and difficult to deform, and the vibration is small.
2. The main drive adopts hard tooth surface full oil bath chain drive, low noise, low heat, high speed and high torque.
3.The main motor uses a vector high-torque frequency converter to adjust the speed.
4 CNC synchronous post-cutting system, cutting table is driven by precision ball screw and high-performance servo motor.
5. Equipped with fixed-length pulse control and feed-forward compensation function to ensure consistent cutting length under different host running speeds.
6. Imported PLC numerical control system is adopted to accurately improve the overall efficiency.
7, Equipped with a new type of operation panel and large-sized color touch screen human-machine interface operation. .
8, Integrated paper supply rack, glue supply rack, paper guide device integrated linkage device, efficiency increased by 60% ..
9, Modular electrical layout design, use, maintenance and repair more convenient and scientific.
MAIN TECHNICAL DATA

Model	GLM-ZG200
Technical parameters		Control system
Paper tube layers	3-25 Layers	PLC	Professional products
Inner diameter	25-200 (mm)	HIM	Professional products
Thickness	2-15 (mm)	Program Version	CX-P 9.04
Speed	0-34 (m/min)	Frequency converter	Famous brand
Fix length mode	Numerical control (light control)	Intermediate relay/contactor	Chint
Winding head	Non-resistance four head	Signal components (proximity switches, etc.)	Famous brand
Cutting type	Single round knife automatic tracking cutting	Button	Siemens
Core mold fixing method	Flanged tight	Urgent stop	Siemens
Gluing	Double side gluing	Rotary button	Siemens
Control mode	Frequency control	Pneumatic parts	Sopai\Tian'ao/Chengdi Brand
Input voltage	380V/220V	Synchronization control	X-axis servo ball screw
Operation	1-3person	Synchronous tracking pipe cutting system	Ourui servo motor
Size (mm)		Cutter lift	Sopai\Tianao Pneumatic
Host size: length * width * height	5200mm*1900mm*2100mm	Emergency stop button	Jiangyin Changjiang brand
Area: length * width	20000mm*9000mm	Air cylinder	AirTAC
Wheel diameter	294mm	The electromagnetic valve	AirTAC
Hub height	360mm/430mm	Configuration device
Host weight	3450kg	Paper holder type	Right-angle fixed hanging paper rack
total weight	4460kg	Supply glue	Automatic stainless steel heating glue tank
Transmission system		Paper tape for smooth oil	Automatic lubrication stainless steel basin
Main power	15kw	Bottom paper break	Automatic alarm
Speed	1400r/min	Tension adjustment	Mechanical adjustment
Wheel max.speed	62r/min	Bottom and face paper device	Stainless steel bottom paper holder, paper basin
Wheel output torque	8500NM	Paper guide wheel	stainless steel pipe
Reducer model	WPO155	Host table	stainless steel plate
Linear Guides	Taiwan	Host angle	Electric adjustment
Ball screw	Taiwan TBI	Roll mandrel	1pc
Drive chain model	12A×2	Coiled belt	2pcs
In-wheel drive	Four-wheel drive	Unloading rack	Automatic stainless steel unloading
Cutter motor	0.4kw gear motor	Application tools	Inner hexagonal 1 set
Transfer method	Gear drive
Bearing	Universal bearing

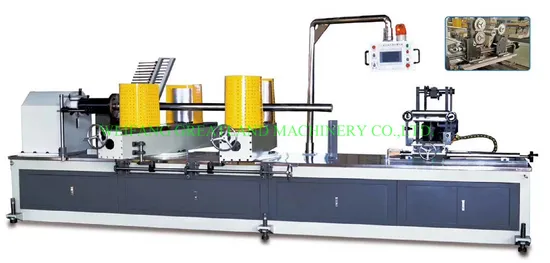

PRODUCT PHOTO
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer. Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.

---
