US$6,200.00-12,500.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
ISO, CE, BV
Size of Equipment
3700*3100*1900mm
Configuration
9kw Spindle+Circular Tool Change
Working Area
1230*2450*200mm
Transmission
X/Y Axis Rack and Pinion,Z Axis Ball Screw
Table Structure
Thickened Vacuum Adsorption Table
Drive&Servo Motor
Yaskawa/Delta
Max Travelling Speed
80m/Min
Max Working Speed
30m/Min
Spindle Rotary Speed
0-24000rpm
Control System
Syntec/Delta
Tool Magazine
Disc Type Tool Magazine
Suitable
Wood Panel,Computer Desk,Panel Furniture
Transport Package
Plywood Boxes
Specification
1300*2500*200mm
Origin
Hefei City, Anhui Province
Production Capacity
35 Sets/ Month
Product Description

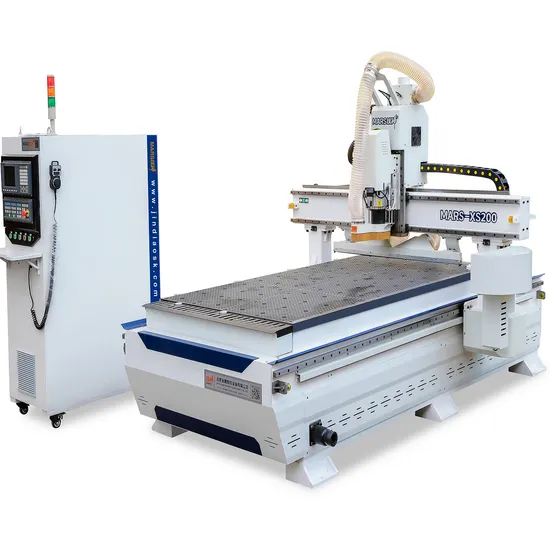

Mars XS200 Disc Type ATC CNC Maching Center
| Model | Mars-XS200 |
| Control System | YASKAWA/DELTA system and wheel |
| Drive System | YASKAWA/DELTA servo |
| Spindle | 9KW air cooling spindle;0~24000 rpm/min |
| Configuration | 9KW spindle+Circular tools change |
| Tool Magazine | Disc type servo tool magazine(8/12/16pcs optional) |
| Working area | 1230*2450*200mm |
| Max.Travelling Speed | 80*80*30m/min (X/Y/Z) |
| Working voltage | AC380V/3 PHASE /50HZ |
| Vacuun Pump Power | 11kw Water cycle |
| Lubrication System | Automatic |
| Transmission Mode | X,Y Axis rack and pinion ,Z Axis ball srew |
| Running Commands | G code,F/S command compatible |
| XY Axis Servo Motor | Taiwan Delta Bus servo |
| Z Axis Servo Motor | Taiwan Delta Bus with band-type brake |
| Adsorption Method | Cavity vacuum adsorption |
| Pushing device | Automatic pushing and dustcollection,Dockable unloading platform |
| Positioning Device | L-type cylinder positioning |
| Tooling Setting | Automatic tooling setting |
| Re-Positioning Accuracy | ±0.05MM |
| Guide Rai | Taiwan CSK |
| Ball Screw | Taiwan PYM |
Exhibition
About Us
Hefei Aquila CNC Equipment Co., Ltd local in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000
square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting
CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary
CNC Router, Mold-making CNC Router etc. numerical control technology.
If you have any questions, welcome to contact us.
>>
