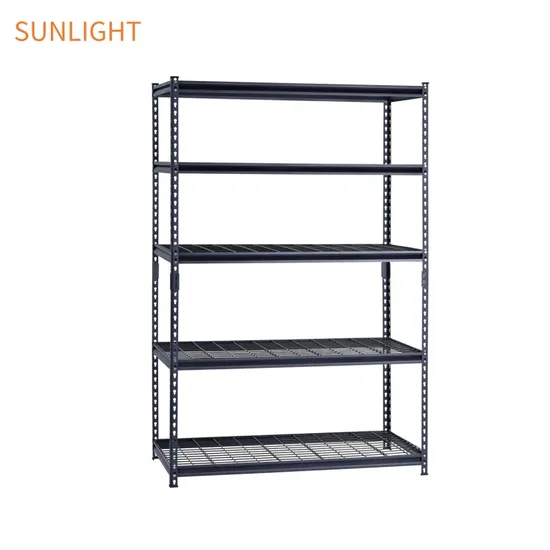

Steel Rack Boltless Shelf Rivet Shelving for Garage Storage

Product Description

Specification:

Shelving Size (MDF panel)	Loading Capacity	Qty
D300×W700×H1448mm, 4Shelves	75-100kg/layer	2400 sets/40ft
D400×W800×H1524mm, 4Shelves	100kg/layer	750sets/20ft
D400×W800×H1600mm, 5Shelves	100kg/layer	920sets/20ft
D300×W900×H1448mm, 4Shelves	75-100kg/layer	2400 sets/40ft
D400×W900×H1828mm, 5Shelves	100-150kg/layer	810 sets/20ft
D400×W1200×H1828mm, 5Shelves	100kg/layer	620 sets/20ft
D450×W900×H1828mm, 5Shelves	150kg/layer	610sets/20ft
D450×W1200×H1828mm, 5Shelves	150kg/layer	470sets/20ft
D300×W700×H1524mm, 4Shelves	70kg/layer	2500sets/40ft
D600×W900×H1828mm, 5Shelves	100kg/layer	475 sets/20ft

Project cases: Post :1-1/2" x 1-1/2"
MDF Panel: 6/9mm Z -rivet Beam : 2-1/8" x 7/8"
Each layer includes 2 long beam + 2 short beam
Manufacturing process:
Packing & Loading:
Factory & Workshop
FAQ:
Q1:what's the lead time?
within15-25days days
Q2:where is your factory located?
Our factory is located in Jiangning District of Nanjing,which is near to Nanjing port or Shanghai Port.
Q3:what's your warranty time?
5 years warranty and lifetime insurance service of all racking products. any qualtity issues that caused by quality of products , we will provide free parts for replacement.
Q4:Are you able to provide installation service?
sorry , we dont supply installation service, but we could come up with a detail instruction & essembling layout, which will help your working team to install.
Q5: What's your material grade ?
Mild Steel Q235
Q6: How is the packing?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with Standard forklift truck or pallet jack
Q7: What's payment terms ?
TT or L/C at sight
Q8: What surface finishing of your products? Electrol galvanized/Zinc plated: The zinc serves as a sacrificial anode( indoor storage)
B. Hot DIP galvanized: It forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C. Powder coating: A type of coating that is applied as a free-flowing, Dry powder(indoor/outdoor storage) Q9:What's the loading capacity?
In general, we have light duty(100~300kg) model, medium duty(400~800kg) model
And heavy duty(1000~1700kg) model available for your choice.
Q10: Is custom size available?
Yes, we do custom products and projects.

---
