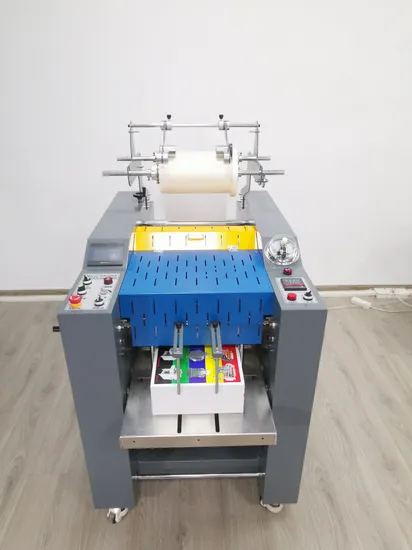

520mm A2 A3 Full Automatic Paper Roll Laminating Machine with Auto Air Feeding and Auto Cutting

Product Description

Product Description 520mm full automatic paper roll laminating machine a3 with auto feeding
Introducing the 520mm A2 A3 Full Automatic Paper Roll Laminating Machine with Auto Air Feeding and Auto Cutting, the ultimate solution for all your laminating needs. This state-of-the-art machine is designed to provide you with a seamless and efficient laminating experience, making it the perfect addition to any office or workspace.
With its automatic air feeding and cutting features, this laminating machine is incredibly easy to use, allowing you to laminate your documents quickly and effortlessly. The machine is capable of laminating both A2 and A3 paper sizes, making it a versatile option for all your laminating needs.
The 520mm A2 A3 Full Automatic Paper Roll Laminating Machine is an automatic laminating machine that is perfect for those who require a high level of precision and accuracy in their laminating projects. The machine is equipped with advanced technology that ensures that your documents are laminated perfectly every time.
This automatic roll laminator is designed to provide you with a hassle-free laminating experience. The machine is incredibly easy to operate, and its automatic features make it a time-saving option for busy professionals. The auto air feeding feature ensures that your documents are fed into the machine smoothly, while the auto cutting feature ensures that your laminated documents are cut to the perfect size.
the 520mm A2 A3 Full Automatic Paper Roll Laminating Machine with Auto Air Feeding and Auto Cutting is the perfect choice for anyone who requires a high-quality, efficient, and reliable laminating machine. With its advanced features and user-friendly design, this automatic hot laminator is sure to exceed your expectations and provide you with the perfect laminating experience. 1 .Mirror chrome plating roller in 200mm
2 .Touch screen human-computer interaction display system;
3. 40cm large capacity intelligent lifting platform
4.Electric hydraulic pressure system, film pressure adjustable;
5. Full automatic air paper feeding control system with overlap ,machine will stop when no paper or no film ;
6.Pneumatic automatic cutting system;
7.Curling-preventing device, preventing laminated paper from curling;
8.Film slitting device; 9.automatic pressure maintenance system
10.MITSUBISHI brand PLC intelligent control system
11.Upper point thread cutter device
12.Automatic stop function for paper shortage; Detailed Photos
Product Parameters

Max. size of roll film	0.52m ×3000 m
Film thickness range	17Mic~42Mic
Applicable dimension of reel for roll film	Φ75mm
Max. O.D. dimension of roll film	Φ300mm
Applicable thickness of paper core	Laser printing paper	128~450g/m2
	Printing paper	157~350g/m2
Max. applicable size of printed matter	520×650mm
Min. applicable size of printed matter	297×297 mm
Capacity of paper table	400mm
Speed regulation range	1~12m/min
Temperature regulation range	80~140ºC
Preheating time	20ºC At room temperature 10min(100ºC)
Operation and display system	Touch screen
Pressurization mode	Hydraulic pressure
Heating mode	inner heater lamp
Laminating roll diameter	Upper roll	High gloss chromium plating 200mm
	Lower roll	Silicon rubber 135mm
Paper overlap accuracy	±2mm
Rated input power	3900W
Rated input voltage	220~240VAC,50/60Hz
Physical dimensions of machine (L×W×H)	1850*970*1260 mm

---
