Precision 6-Axis CNC Deep Hole Drilling Milling Machine for Metal Molds

Product Description

Drilling stands as the cornerstone of machining operations, encompassing a vast array of applications. Traditional drilling equipment like bench drills, milling machines, and radial drills have historically restricted operators, requiring repetitive manual involvement, which impacts both quality and efficiency. Moreover, safety concerns and processing constraints further challenge manufacturers and operators. The advent of the CNC era heralds a revolutionary transformation, especially with the introduction of CNC depth drills. These advanced machines liberate operators from manual tasks and effectively address the depth drilling bottlenecks, achieving the precision of conventional machines in drilling, enlarging, and expanding operations. They also enable automatic chip removal, CNC positioning, and automated processing, significantly boosting productivity and quality.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The CMD series six-axis drilling and milling composite machine tool exemplifies versatility, equipped with capabilities to process deep holes and perform intricate milling. Its hallmark features include a rotating workbench and a dynamic A-axis, enabling precise machining of complex parts, such as those with inclined and double inclined holes or surfaces. This multifunctional machine tool finds applications across diverse industries.
Industries benefiting from this technology include automotive mold manufacturing, engine cylinder block production, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering, among others. Notably, it excels in tasks such as machining inclined top rods on molds, double inclined water paths of hot forming molds, hot runner plates, engine cylinder bodies, rolling rollers, rotary tables, and flywheels.
1.Complete control and servo systems from Japan's renowned FANUC, ensuring unmatched precision and reliability.
2. Featuring a dual closed-loop design for A and B axes, this machine meets the exacting standards required for precise composite angles.
3. It boasts deep hole drilling and milling capabilities, while offering an optional single pipe drilling function for enhanced versatility.
4. With a large A-axis swing angle, the machine provides a broader processing range, accommodating diverse application needs.
5. The fan-shaped disc design of the hard rail ensures stable and reliable movement of the A-axis, guaranteeing precision.
6. An anti-deviation load rotating workbench enhances operational accuracy and efficiency.
7. Heavy pre-pressed roller precision wire rail paired with a large diameter grinding grade screw rod for superior performance.
8. Dual cycle precision filtration system combined with a high-pressure cooling chip removal system ensures optimal machine functionality.
9. The newly designed fully enclosed cover combines aesthetic appeal with a cutting-edge technological feel.
10. The optimized body design offers remarkable rigidity, high stability, and outstanding seismic resistance, enhancing machine longevity and performance.

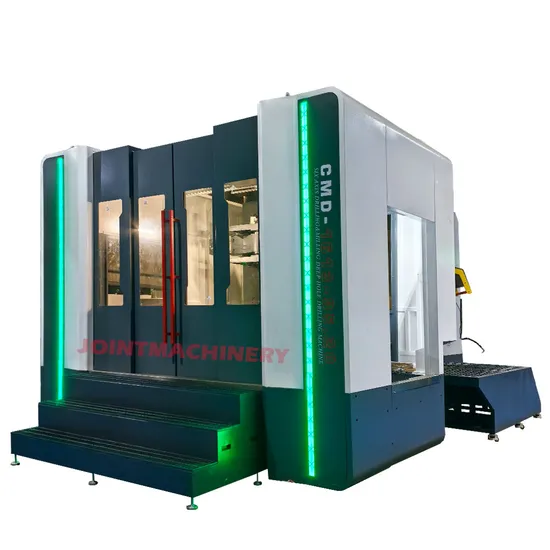

Precision 6-Axis CNC Deep Hole Drilling Milling Machine for Metal Molds

Model	Unit	CMD-3018-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-50
Drilling diameter of single pipe drill	mm	18-65/optional
Max drilling depth of gun drill (W)	mm	1800
Machining Stroke
Left and right of workbench (X)	mm	3000
Sliding table stroke (Y)	mm	1800
Column stroke (Z)	mm	1200
Max drilling depth of gun drill (W)	mm	1800
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	25000
Size (L*W)	mm	2200*2000
Spindle
Spindle taper capacity		BT50
Max spindle speed	rpm/min	4500
Power
Spindle motor	kw	15/18.5
X-axis feed servo motor	N.m	36
Y-axis feed servo motor	N.m	36
Z-axis feed servo motor	N.m	36
W-axis feed servo motor	N.m	36
A-axis feed servo motor	N.m	36
B-axis feed servo motor	N.m	36
Total power	kw	65
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	10500*7500*6200
Machine weight (About)	kg	30000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1600+1200

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering commitment to delivering high-quality machines and exemplary service has cemented our reputation among global customers. We meticulously control and enhance machine quality to surpass the highest industry standards. By integrating core technologies from Taiwan and Germany with cutting-edge production equipment and processes, we ensure our machines deliver superior quality, precision, stability, and reliability. Renowned for their exceptional performance in meeting complex and high-demand machining requirements, our machines are exported worldwide. Our expansive market presence includes Asia, Europe, South America, North America, and beyond. We have fostered enduring partnerships with customers across nations and regions, culminating in mutual business success and value creation.

---
