V Type China Ratchet 0.75 Ton Manual Lever Hoist CE Certificate

Product Description

Product Description

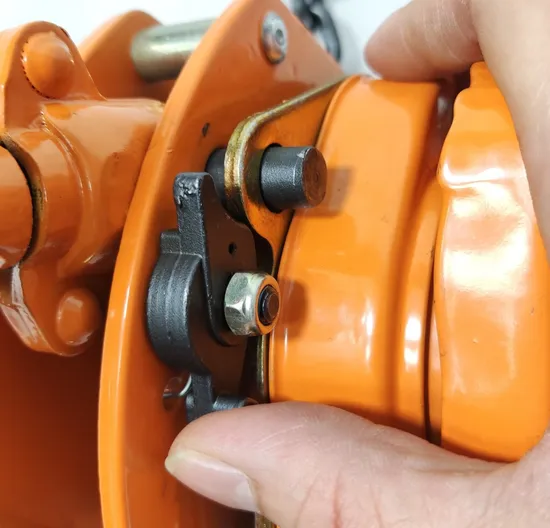

HSH-V type hand pull hoist is a light and small, multi-purpose manual lifting, traction machinery, widely used in electric power, mining, shipbuilding, construction, transportation, post and telecommunications and other departments of equipment installation, lifting, traction, loose parts binding, line tensioning and welding and other occasions. The lever block has load control with a mechanical brake, hardened steel hooks with latches. The chain hoist is ideal for warehouse,auto shops, construction site and more operationg situation. Built-in gearing can make the chain hoist easy to use. One-hand operation allows easy control of load.Super light structure with tough steel construction and compact design can be operated even in high or narrow places.

Model	HSH-V2.5	HSH-V5	HSH-V7.5	HSH-V10	HSH-V15	HSH-V20	HSH-V30	HSH-V60	HSH-V90
Rated load(T)	0.25	0.5	0.75	1	1.5	2	3	6	9
Test load(T)	0.375	0.75	1.125	1.5	2.25	3	4.5	9	13.5
Standard lift(m)	1	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Min. distance between two hooks(mm)	205	260	295	295	335	385	450	615	720
Efforts required at capacity(N)	217	303	140	185	234	251	363	370	375
No. of load chains	1	1	1	1	1	1	1	2	3
Diameter of load chain(mm)	4	5	6	6	7.1	8	10	10	10
Dimensions(mm) A B C D E	92 75 205 153 17	110 82 260 261 23	152 128 295 256 26	152 128 295 256 26	175 148 335 368 30	175 160 385 368 33	195 181 450 368 34	195 232 615 368 47	195 366 720 368 64
Net weight(kg)	1.85	4.6	7.7	8	10.6	14.8	20	28	46

Can I get a sample before order?
sure, we provide you Free sample within 3-5 working days.
can you accept small order?
for some normal items, we can do small quantity according your details requirement.
How about your delivery time?
25-30days

---
