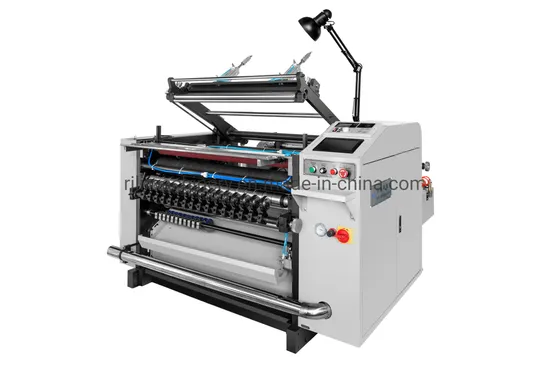

Thermal Paper Slitting Machine ATM Thermal Paper Slitting Machine Cutting Machine

Product Description

Thermal paper slitting machine atm thermal paper slitting machine cutting machine
Detailed Product Description
Feature:
1. The design of this machine is from Corea and has got improved; it can reach the high quality request of slitting and rewinding fax paper, cash paper, and cardiogram printing paper, computer printing paper, taxi ticket, and commercial bill and so on.
2. It is applicable to slit the narrow scope paper, automatic counting the length (meter), setting the length, automatic stopping, also auto frequency conversion.
3. Automatic feeding and correct errors for unwinding, automatic blowing rim charge conveying device.
FUNCTION:
1.It is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller.
2.All of the program are setted by the touch screen(PLC).
3.Unwinding part with automatic loading system, the tension force is auto controlled by the Programmable Logic Controller.
Main Technical Variables

Max width	900MM
Max unwinder Dia.	φ1200MM
Reel paper core inner Dia.	φ76MM(3′′)
Standard slitting width	30-450mm
Rewinder shaft	12/15/17 each 2pcs
Max.rewind Dia.	Φ180MM
Cutting speed	180M/MIN
Tolerance of EPC	±0.3mm
Total power	4.5kw
POWER voltage	380V 50HZ
Overall dimension(L×W×H)	1600×1800×1500mm
Machine weight	1500KG

Extra Spare Parts List

No.	Name	Qty(pcs)
1	Upper Round Knife	10
2	Lower Round Knife	5
3	Rewinding Shaft	4
4	Nose Pliers	1
5	Oil Month	1
6	Socket Head Wrench	1 set
7	Wood Screwdriver(crosshead)	1
8	Wood Screwdriver(Minus)	1
9	Special Wrench	1
10	Open-end Wrench	1 set
11	Test Pen	1
12	Round Blade Springs	30
13	Foot Screw	8
14	Foot Bottom Plate	4
15	Spacer	5
16	Operation Manual	1
17	Frequency Inverter Manual	1
18	Tension Manual	1

---
