High Efficiency Rotary Kiln for Sale

Product Description

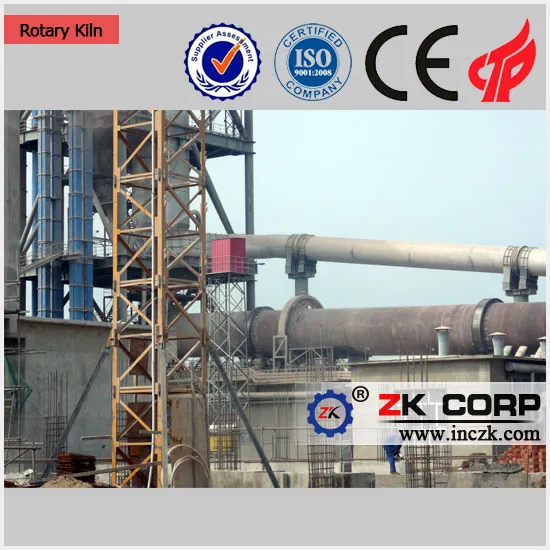

High efficiency rotary kiln for sale
Product description:
Rotary kiln is the key equipment in cement ,lime ,magnesium ,FeNi plant,according to the capacity of project,we can help you select different size of rotary kiln,which is usually from 900mm to 5000mm.
Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc.The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc.The kiln body has a certain tilt angle with level.The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
Features of rotary kiln:
1) Professional design
2) 50 years experience
3) PC control system
4) Environmental
The energy-saving rotary kiln:
A) There is a vertical preheater in the end of rotary kiln, make the best of the high temperature combustion gas to preheating the materials, so that materials in the preheater was partially decomposed, so that System production capacity increased by 40%, and thermal efficiency increased by 30% comparing the traditional process.
B) Regarding the cooling system of the end high active lime product, We apply the modern advanced technology of the new type vertical cooling machine, The device is new fourth generation reference to the foreign upright cooler specially designed products in late nineties, The device machine running smoothly, with a strong quenching effect, the cooling effect is obvious, the increased activities of the lime is extremely beneficial
C) Flue gas treatment system configuration and high efficiency heat exchanger bag filter, replacing the traditional electrostatic precipitator, the measures will not only reduce the use of highly efficient heat exchanger preheater exhaust gas temperature, increase air temperature, to reduce the volume of the combustion gas, bag dust collector replaced the electrostatic precipitator.
Rotary kiln's parameter:

Spe.	Capacity(t/h)	Rev.(rpm)	Support NO.	Reducer	Motor	Power(kw)
					Model
1.6x32m	2.0	0.58-2.85	3	ZQ75-50	YCT250-4A	18.5
1.6/1.9x36m	2.5-3.0	0.53-1.59	3	ZQ110-7	YCT250-4B	22
1.9x39m	3.0-3.4	0.53-1.59	3	ZQ125-7	YCT315-4A	37
2.2x45m	4.0-5.0	0.21-1.64	3	ZS125-5	YCT315-4B	45
				ZQ40-40	Y112M-4	4
3.2x50m	1000	0.79-3.94	3	NZS955-28VBR	ZSN4-280-21B	160
				ZL50-9-2	Y180L-6	15
3.2x64m	8.0-10.0	0.40-1.50	4	ZL130-16	ZSN-280-11B	190
				ZL50-10	Y180L-4	22
3.2x118m	17.0	0.29-1.46	6	H500C-SW-71	Z4-250-31	110
				ZL50-8-1	Y160L-6	11
3.3x50m	1000	0.36-3.57	3	NZS995-40-VBL	ZSN4-280-21B	160
				NZS352-31.5	Y160M-4	11
3.8x58m	20.8	0.4-1.5	3	ZSY500-40	Zsn-315-072	250
				ZL50-14	Y180L-4	22
4.0x60m	25	0.4-1.5	3	ZSY630-35.5	ZSN4-355-092	315
				ZL65-16	Y200L-4	30
4.0x80m	29.17	0316-1.528	4	JH560C-SW-71	ZSN4-280-11B	160
				ZL50-9-1	Y180L-6	15
4.0/3.5/4.0x150m	30.4	0.34-1.71	6	JH560C-SW-56-1/2	ZSN4-280-11B	2X125
				ZL50-10-1/2	Y160L-6	2X11
4.0x150m	33.3	0.51-1.53	6	JH560C-SW-63-1/2	ZSN4-280-11B	2X125
				ZL60-12-1/2	Y160L-6	2X11
4.0x150m	30.0-34.0	0.40-1.59	6	JH800C-SW-90	ZSN4-355-092	280
				JH280-SW-40	Y200L-4	30
4.7x72m	4000	0.35-3.50	3	ZSY710-28-V	4-400-32	550
				ZL60-7-2	Y200L-4	30

Packaging and shipping:
Company information:
Henan Zhengzhou Mining Machinery Co., Ltd is located in Wulong Industrial Park of Zhengzhou Xingyang which is the capital of Henan Province.It is at the junction of 310 State Road and Xingmi Road, close to the highway, railway station, West Zhongyuan Road, downtown area of Zhengzhou and Zhengzhou International Airport.The transportation condition is very convenient.The main products of company include:Ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry.The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.
Our service:
1.Select excellent installation team or installation service personnel for you;
2.Provide you with operating and training services;
3.Help with the equipment commissioning, and solve problems in trial operation;
4.Check and acceptance service for single equipment or a whole production line;
5.Service items including follow-up visit, customer satisfaction surveys and so on;
6.Timely provide you with necessary accessories after acceptance;
7.Provide you with warranty services of repair, replacement and refund if conditions are fulfilled.
8.Help you solve other problems.
FAQ:
In order to choose the right type of kiln for you and give you a more suitable quotation, please answer the following question.
1.What is your raw material to be calcine ?
2.What is the maximum feeding size of your raw material?
3.What is capacity you want?How many tons per hour?
4.What kind of fuel do you use?
5.Are you the end user or will you re-sell the machinery to your clients?

---
