Advanced Wood Pallet Production System with High Capacity

Product Description

Advanced Wood Pallet Production System with High Capacity
Product Description

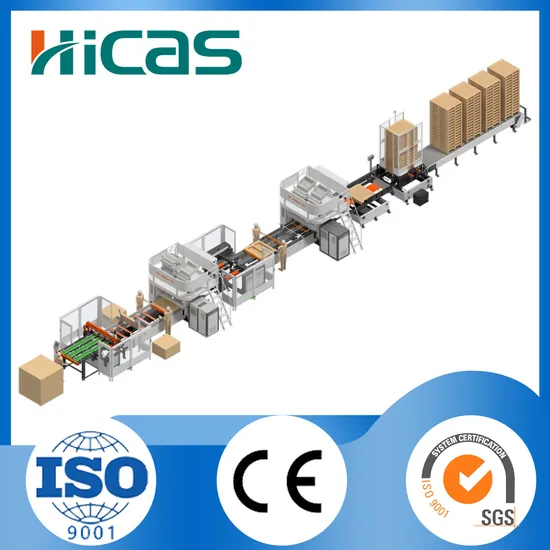

SF1000 automatic wooden pallet production line is used for assembling solid wooden pallets
The entire production line is modularly connected, can control each station start and stop through program. The full line consist with below separate machines, you can choose by on your requirements.
Product Parameters

Model	SF1000 automatic wooden pallet production line
Pallet type	Stringer/block pallets
Pallet width	800-1500mm
Pallet length	800-1500mm
Pallet height	80-160mm
Wood accuracy	-2mm max.
Productivity	About 4-6pc/min
Labor	4-5 operators
Nailing gun quantity	36pc in first nailing head 24pc in second nailing head
Bulk nails	35-100mm length body diameter 2.8-3.2mm head diameter 6.5-8.0mm 1st Nailing head with 3 nail boxes can use 3 different size nails in one pallet. 2nd Nailing head with 2 nail boxes can use 2 different size nails in one pallet.
Total power	95.5KW
Voltage	380v 50 Hz 3 phase
Air pressure	0.65-0.8MPa
Motors brand	Chinese brand
Electric components	Schneider brand
Pneumatic components	AirTac brand
PLC & touch screen	Siemens brand
Total space	35*5*3.5m
Total weight	About 20ton

Detailed Photos

Comparison with Peers
Related Product

SF9026	Stringer Wood Pallet Making Machine	Read More>>
SF9025	Stringer Wood Pallet Making Machine	Read More>>
SF9010	Stringer Wood Pallet Nailing Machine	Read More>>
SF9022	Wood Pallet Legs Nailing Machine	Read More>>
SF1000	Wooden Pallet Production Line	Read More>>
SF2000	Wood Pallet Mat Nailing Machine	Read More>>
SF9020	Pallet Leg Nailer	Read More>>
SF9030	Manual pallet assembly line	Read More>>

Production Process
Company Profile
1) Founded in 2011.
2) Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine, wood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7) Customer visits & feedbacks & exhibitions
8) Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9) We have many CE certifications, EPR certifications, ISO certification and product patents.
10) Our After Sale Service & Packaging & Shipping
FAQ
Q, Can this machine make Euro/block or US/stringer pallets?
A, Yes, our this production line can make most pallets in market, just with customized molding system, time to adjust machine when change pallet need about 4-8 hours.
Q, Can the machine size bigger? Means make much bigger pallet
A, Yes, we can customize base on your requirements, with extra cost.
Q, Can this machine make two layers pallets?
A, Yes possible, 2-4 layers all can make.
Q, How long time for the machine production?
A, Normally 10-12 months.
Q, Is it difficult to maintenance the machine?
A, If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.

---
