Paper Lid Making Machine for Ice Cream Cup

Product Description

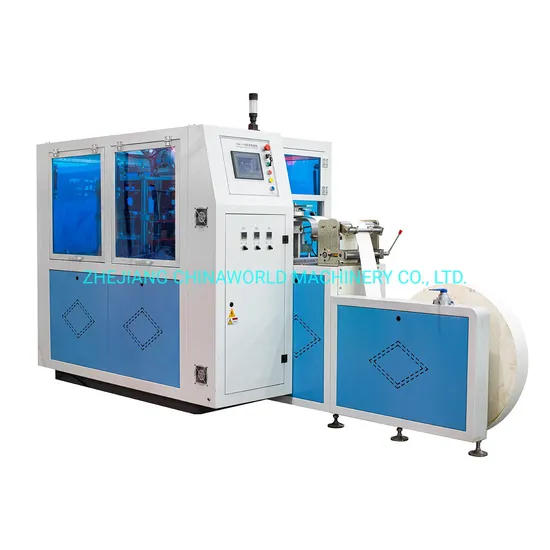

CWZ-118 Single layer Paper Lid Forming Machine Product Description
Model CWZ-118 Automatic paper lid/cover machine is the ideal equipment for production of paper soup bowl cover, coffee cup lid, paper container lid. The lid made by one disc paper, save cost, paper lid side folded and gentle lock on cup, can block little water out.
The machine is easy to operate(a person), stable performance, high efficiency, it introduces the advanced technology completely, can save raw material and the energy consumption is low. It's a preferred investment business project.

Product Parameters

Model	CWZ-118
Price:	20800USD
Raw Material :	Single or double PE coated paper(250-450gsm), coated paper, varnish film paper
Lid Height:	8-15mm
Lid Diameter:	55-118mm
Speed :	70~100 pcs/minute; (about 4200~6000 pcs/hour);
Total Power :	10 KW;
Power Source :	380V 3-Phase 50Hz
Total Weight :	2500 KG;
Machine Size :	(L*W*H) : 3000*1200*1650 mm
Working Air Source :	Air Pressure: 0.4Mpa, Air Out-put : 0.3m3/minute; (Air Compressor Required)
#PLC Control #Feed Roll Paper #Auto Emboss, Creasing #Auto Punching, Forming #Auto Oil System #Counter+Convey+Stack

Machine Detail
