Wd67y Hydraulic Press Brake Controller Carbon Steel Metal Processed Motor Pump Gear Bearing Aluminum Metal Horizontal Press

Product Description

Product Introduction

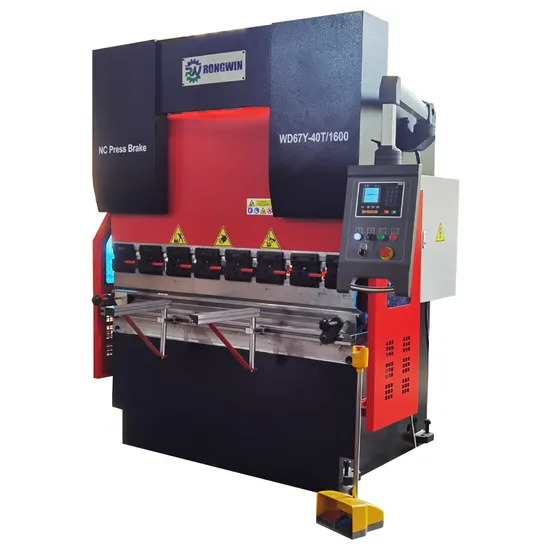

WD67Y Hydraulic Press Brake Controller Carbon Steel Metal Processed Motor Pump Gear Bearing Aluminum Metal Horizontal Press RONGWIN Estun E21 NC press brake machine is designed by the advanced technology, which has the advantages of easy operation, economical and practical. Although it is an NC bending machine, the effect is comparable to a CNC press brake. The E21 bending machine is provided digital display for the positions of rear stopper and gliding block, as well as prompting function for soft limit of X/Y shaft and one-way positioning clearance. Rear stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in cooperation with digital display system, thus to further increase the operating precision of this machine Product advantages
Packaging & Shipping

Technical parameter

Model WD67Y-series	Nominal Pressure (mm)	Bending Length (mm)	Poles distance (mm)	Throat depth (mm)	Slipper Stroke (mm)	Max Opening Height (mm)	Main motor (KW)	Travel (mm)	Weight (Kg)
40T/1600	400	1600	1260	300	150	420	5.5	500	3800
63T/2500	630	2500	2000	300	150	420	5.5	500	4800
80T/2500	800	2500	2000	350	200	480	7.5	600	5700
100T/3200	1000	3200	2700	400	200/250	480/520	7.5	600	8500
100T/4000	1000	4000	3600	400	200/250	480/520	7.5	600	9300
160T/3200	1600	3200	2700	400	200/250	480/520	11	600	9500
160T/4000	1600	4000	3600	400	200/250	480/520	11	600	12100
200T/3200	2000	3200	2700	400	250	530	15	600	11000
200T/4000	2000	4000	3600	400	250	530	15	600	13500
250T/3200	2500	3200	2700	400	250	530	18.5	600	13000
250T/4000	2500	4000	3600	400	250	530	18.5	600	15500
250T/5000	2500	5000	4300	400	250	530	22	600	18000
300T/3200	3000	3200	2700	400	300	580	22	600	19200
300T/4000	3000	4000	3600	400	300	580	22	600	22500
400T/4000	4000	4000	3600	400	320	580	30	600	25500
400T/5000	4000	5000	4000	400	320	580	30	600	31500
500T/4000	5000	4000	3500	500	320	590	37	600	34500
500T/5000	5000	5000	4000	500	320	590	37	800	43500
500T/6000	5000	6000	5000	500	320	590	37	800	53000
600T/5000	6000	5000	4000	500	320	640	45	800	57000
600T/6000	6000	6000	5000	500	320	640	45	800	68000
600T/7000	6000	7000	6000	500	320	640	45	800	79000
800T/6000	8000	6000	5000	600	400	800	55	800	90000
800T/7000	8000	7000	6000	600	400	800	55	800	105000
800T/8000	8000	8000	7000	600	400	800	55	800	120000
1000T/6000	10000	6000	5000	600	400	800	2×37	800	100000
1000T/8000	10000	8000	6900	700	400	800	2×37	800	130000
1000T/10000	10000	10000	8000	700	400	800	2×37	800	150000
1200T/6000	12000	6000	4220	700	400	1000	2×45	1000	130000
1200T/7000	12000	7000	5220	700	400	1000	2×45	1000	160000
1600T/6000	16000	6000	4900	700	400	1000	2×55	1000	150000
1600T/7000	16000	7000	5900	700	400	1000	2×55	1000	170000
1600T/8000	16000	8000	6900	700	400	1000	2×55	1000	190000
1600T/10000	16000	10000	8000	700	400	1000	2×55	1000	210000
2000T/8000	20000	8000	6200	700	400	1000	2×55	1000	260000
2000T/10000	20000	10000	8000	700	400	1000	2×55	1000	290000
2000T/12000	20000	12000	9050	700	400	1000	2×55	1000	320000
2000T/14000	20000	14000	11000	700	400	1000	2×55	1000	350000
3000T/8000	30000	8000	6200	700	400	1000	2×55	1000	/
3000T/10000	30000	10000	8000	700	400	1000	2×55	1000	/
3000T/12000	30000	12000	9050	700	400	1000	2×55	1000	/
3000T/14000	30000	14000	11000	700	400	1000	2×55	1000	/

Related Products
Company Profile
Founded in 2017 years ,Nanjing RONGWIN Machinery Technology Co., Ltd is focus on press brake manufacturing and a professional one-stop smart custom metal solution service supplier . We are committed to building a strong Chinese metal working machinery and spare parts supply Chain System .
We have a dream "Let China's one-stop smart custom metal solution serve the world " and "We want to become a respected Chinese press brake manufacture,live 100 years " That's why we're always trying to keep our users satisfied .
We are specialized at metal working machinery and spar parts, like press brake, panel bender,fiber laser cutting machine, shearing machine, rolling machine, V grooving machine, hydraulic press, power press, ironworker, notching machine, tube cutting machine,tube bending machine ,HVAC Dust Machine, punching die, blades, kinds of toolings, etc. We can give customer all the aspect solutions for the metal industry fabrication machinery. We can guide customers for choosing their metal processing equipment so that customer can get the most cost-effective solution by our guide. Meanwhile we also can do O E M & O D M service. We have professional engineer support, high efficiency sales team and competitive price , we design our machine in a top class level which makes our machine in a good looking appearance , due to the good after sale service and reliable quality, we have sold to many foreign customers, they like our machines, they usually buy from us not only one time, now we already sold to more than 70 countries, including Europe, South America like Brazil, U S A, Canada, Russia, Vietnam, Pakistan, Australia ,New Zealand, Africa, Middle East country etc. After several years' development, We already applied some patent, and also got CE certificate and SGS for Press Brake, Laser Cutting machine,Panel Bender,V grooving machine etc, we will grow up together with our customer's support, we believe that our company will have a bright future.
Please trust ROGNWIN .We are always trying to make you satisfied .
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate

---
