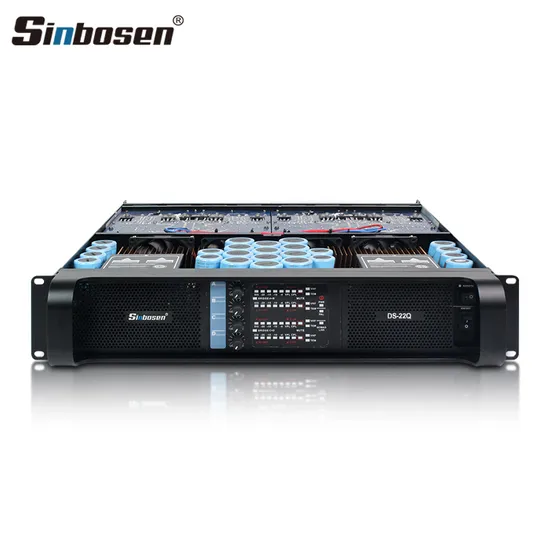

20000 Watt Fp22000q Amplifier Module Class Td DJ Professional Power Amplifier Audio 4 Channel

Product Description

20000 watt amplifier FP22000Q amplifier module class d dj amplifier circuit 4 channel
Product Parameters

FP Series	DS-7K	DS-9K	DS-14K	DS-6Q	DS-10Q	DS-22Q
8ΩStereo Power(RMS)	1500WX2	1800WX2	2400WX2	700WX4	1350WX4	2500WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1300WX4	2100WX4	4650WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2500WX2	4200WX2	8800WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3000WX2	5000WX2	14500WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB

New heat sink We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
Capacitor Upgrade
The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity. The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.

Feature

4 Channel Class TD Switching power amplifier. 4 x 4,650 Watts into 4 Ohms,4 x 2,500 Watts into 8 Ohms Neutrik XLR*/speakon connectors. Use Original high-quality capacitor 3600uf 200V. Use Original ONSEMI type PNP power output transistor. Creat SUPER sound quality,good for dual 18 or 21 subwoofer. High quality fans from TaiWan. Extended heatsink board to 94 mm. Separately controllable on Gain. Scalable Voltage Peak Limiter (VPL). Bridge-mode operation for Touring Applications. Comprehensive protection scheme.

FAQ
1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!

2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!

3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal.

4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!

5.How long is your guarantee period of products?
A:3 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!

6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!

---
