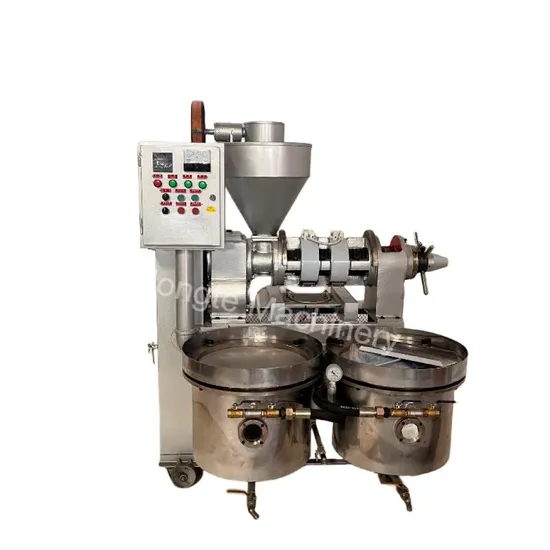

Factory Automatic Temperature Control Oil Filter Combined Oil Press Machine

Product Description

Product Description
The series of automatic temperature control vacuum combination oil press has added the automatic control function of the chamber heating, which can heat the sound of the cage, snail and ring before pressing, which has changed the traditional way of heating up with dry cake milling, shortened the preparation time, reduced energy consumption and wear of the machine, and automatically kept warm the chamber if the production is interrupted.
The single press is turned into a press (squeeze) filter (oil) combination machine, and after the grease is squeezed out, it directly enters the vacuum oil purifier for filtration.

The screw oil press machine with oil filter is suitable for both direct pressing with pre-processing or not from oil crops such as rape seed, peanut, sunflower seed etc depends on oil seeds.
The oil expeller machine is more advanced up to now with large throughput, high output rate, the finaly oil is pure without impurity and foam.
If the screw oil press machine equipped with our automatic loading machine could completely realize automatic production.



Product Parameters

Model	HT-90WKZ
Processing Capacity (t/24h)	≥1.3
Oil Press Power (kw)	5.5
Temperature control power (kw)	≥2
The power for filtration (kw)	0.75
Machine weight (kg)	650
Machine size(L*W*H) (cm)	140*128*170
Oil content of dry cakes (%)	≤7.8
Spiral axes rotate speed(r/min)	32-40

Detailed Photos
Advantage:
1.Optimized design of the rows makes the oil pressing no slag and no leakage, and the oil is cleaner
2. Integrated control system with temperature controller makes operation simple and convenient
3. Stainless steel hopper, cover and oil guide plate make the oil healthier and sanitary, and easy to clean
4. Vacuum filter with vacuum pump and pressure gauge makes the oil cleaner Application
Packaging & Shipping
Certifications
FAQ
Q:What serivice do you provide?
(1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.(5) Providing installation video.(6) Developing agents with good policies around world.

---
