High Capacity PP Woven Bag Recycling Line with Efficient Output

Product Description

Applicable Material:
Our advanced recycling line is versatile, handling a variety of materials such as PE/PP Films, Industrial Films, City garbage film, PP woven bags, and Raffia jumbo bags.
Introduction
Discover the innovative waste plastic film recycling and washing line crafted by YILI Machinery, designed to efficiently process a wide range of plastic soft materials like PE or PP plastic film, PP woven bags, waste agricultural films, waste soft drip irrigation pipes, industrial packing films, and supermarket packing films. The line boasts a series of sophisticated machinery including a shredder, crusher, frication washer, floating tank, and squeezer, delivering impressive capacities ranging from 300 to 1500 kg/hr. Our advanced film washing line guarantees meticulous and efficient decontamination of waste films through both cold and hot washing systems, utilizing cutting-edge recycling technologies. The superior quality of the final products post-washing allows them to be used solo or mixed with other materials for reprocessing, and are suitable for new film blowing applications.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
QX300	300-400	160	0.5	3
QX500	500-600	200	1.2	3
QX1000	800-1000	250	3	4
QX1500	1300-1500	325	4	4
QX2000	1800-2000	415	4	4

Tech Features & Advantages Experience the convenience of a fully automatic production line, featuring a compact process, high production efficiency, and superior cleanliness; Effortlessly separate mud, sand, and other impurities from films and bags.; With a pre-treatment system, including a Pre-washer and Label processing, you can substantially enhance the end product quality; Benefit from our cutting-edge centrifugal dewatering and squeezing technology; Enjoy easy maintenance, low energy consumption, and a long operational lifetime
Main Machines For the line
Belt conveyor
Choose from both light and heavy-duty belt conveyors featuring a durable gear box motor and side walls to prevent material spillage. An optional metal detector can be installed on the belt conveyor for enhanced safety.
Shredder For large raw materials such as big plastic drums, tanks, Lumps, and die head materials, our shredder provides effective preliminary grinding. Post initial crushing, the material moves to a secondary crusher for finer crushing, ultimately achieving material sizes less than 12mm. This size is ideal for thorough cleaning. YILI offers a diverse range of shredders with various capacities and functions tailored to customer needs.
Crusher
Our crusher breaks down materials into smaller sizes, utilizing water to clean and cool blades during the process. This module converts large materials into manageable pieces, enhancing washing results and facilitating easy packaging of the final product.
Frication Washer The frication washer, operating at high speed with water, effectively removes contaminants, dirt, and grease from materials. Post-washing, materials proceed to the floating tank for further cleaning.
Floating tank
Effectively separate sediments and metals within materials using this module. It features washing wheels with diverse designs to meet specific washing functions, speed managed by inverter control, and a bottom magnetic valve for timely dirt discharge. Constructed from stainless steel for robust performance.
Centrifugal Dryer Our horizontal-type centrifugal dryer delivers high-performance drying of plastic flakes with minimal energy use. Equipped with a self-cleaning grid mesh triggered by a timer, it ensures comprehensive washing and drying in one efficient process.

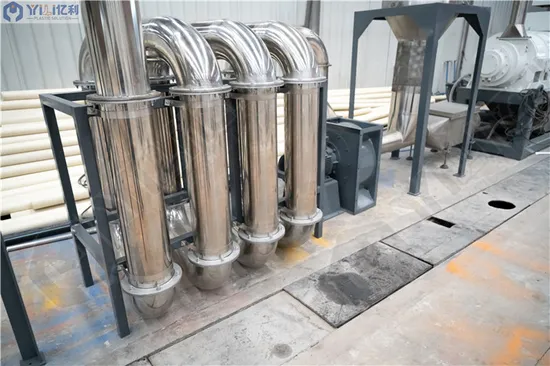

Hot air pipeline heating
