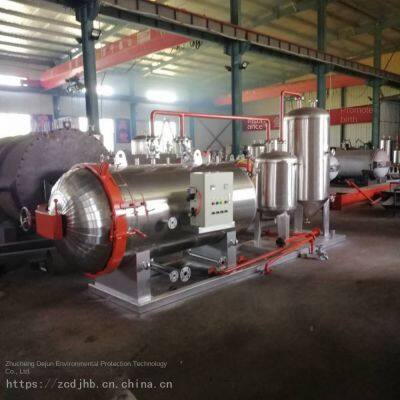

The slaughtering waste treatment equipment - wetting machine, developed and produced by Zhucheng Dejun Environmental Protection Technology Co., Ltd., can handle diseased and dead pigs, chickens, ducks and other diseased livestock and poultry. It is widely used in pig farms, chicken farms, duck farms, hatcheries, slaughterhouses, meat food processing plants and other units. 1. This equipment has a beautiful appearance, a compact structure, occupies a small area, and is safe and convenient to operate.
2. This equipment is equipped with safety devices such as pressure gauges and safety valves, and is safe and reliable to use.
3. This equipment uses steam as the heat source and has no other energy consumption. It has a large heating area, a fast temperature and pressure rise, and a high working efficiency, which greatly shortens the harmless treatment time.
4. The equipment is manufactured in accordance with national standards for boilers and pressure vessels, is corrosion-resistant, and has good pressure-bearing performance.
5. It is equipped with an oil residue separation facility that can effectively separate animal residues and oil-water mixtures.
6. The equipment saves energy, requires less investment, and has a low daily operating cost.
Treatment process:
1. Put the diseased and dead livestock and poultry into the wetting frame, and then push it into the chemical machine through the trolley.
2. The steam generated by the electric heating steam generator enters the chemical machine for high-temperature and high-pressure chemical treatment. According to the type and quantity of treatment, high-temperature and high-pressure treatment is carried out for 240-480 minutes (the temperature is 160-190°C, and the pressure is 0.8-1.2Mpa) for the treated objects.
3. Oil-water separation: After achieving the wetting effect, open the exhaust valve according to the process procedure to discharge the remaining gas into the deodorizer. After the exhaust valve is closed, discharge the oil-water mixture into the oil-water separation equipment for physical separation and refining. The oil can be used as industrial oil, and the water can enter the sewage treatment plant for treatment.
4. Material transportation after treatment: Open the pot door, pull out the frame containing bone meal after the chemical treatment is completed, and place the bone meal in a ventilated place for air drying, which can be used as the raw material for organic fertilizer.
The wetting machine adopts high-temperature and high-pressure technology and is designed based on the principle that microorganisms are difficult to survive under high-temperature and high-pressure conditions (temperature 160-190°C. Pressure 0.8-1.2MPa). The index is ≥ log6 standard. Using high-pressure saturated steam, it directly contacts with animal tissues. When the steam encounters animals and condenses into water, a large amount of heat energy is released, which can melt the grease and solidify the protein. At the same time, with the help of high temperature and high pressure, the pathogens are completely killed.
After-sales service
1. Production cycle
It generally takes 10-40 working days, which is determined according to the model and quantity of the products ordered by the customer.
2. About the model
Customers can choose the model that suits them according to the type and output of the materials to be processed.
3. About the material
There are currently two types: carbon steel and stainless steel. Stainless steel is divided into two grades: 304 and 316.
4. About customer service One-on-one service. After the equipment is purchased, a dedicated technician will come to the door to guide the installation and commissioning, and train 1-2 operators.
5. About after-sales
One-year warranty and lifetime maintenance.
6. About delivery
Motor transportation, wrapped with plastic film. It generally takes 3-7 days depending on the distance.
Zhucheng Dejun Environmental Protection Technology Co., Ltd. is engaged in the development of environmental protection products and technologies, environmental protection projects, the operation of environmental protection facilities, and technical services. The company is located in Zhucheng City, Shandong Province, which is a well-known top 100 county in China. The company has an academic, experienced, and highly dedicated R & D and engineering and technical personnel team. The company adheres to serving customers with high and new technologies, and gains the trust of users with excellent product quality. While the company is developing rapidly, it has received extensive respect and praise from the industry and customers.
Focusing on serving meat breeding, production and processing enterprises, the product specifications range from small to large, suitable for small slaughtering (breeding) points, small slaughtering (breeding) farms, medium and small slaughtering (breeding) factories, and large and extra-large slaughtering (breeding) enterprises. Customized production can be carried out according to customer requirements.
>>
