65m 130m3/H Large Concrete Pumping Truck 40ton

Product Description

Shanghai VOSTOSUN Industrial Co., Ltd was founded in 2006, it is a subsidiary company of AVP GROUP, which has been focusing on centralized procurement and supply services for engineering, mining and Civil or Construction Project over the past decade.
Cooperating with excellent institutes in the domestic industries, domestic high-quality suppliers, international financial and insurance partners, we have integrated all high-quality resources and established a mature oversea regional service networks around the world, e.g, regional service centers in Russia, Kazakhstan and Australia, providing machinery, equipment and parts display, warehousing and after-sales services throughout the country. Our service covers more than 30 countries and regions including Eastern Europe, Central Asia, The Middle East, Africa, South America, Southeast Asia, and Australia,etc.
Since 2006, SHANGHAI VOSTOSUN, as the UN(United Nations) designated supplier for the procurement and supply of machinery & equipment for its aid projects in Asia and Africa, has provided lots of machineries, equipment and general contracting services for many national large-scale projects, such as:
·Kazakhstan Astana Capital Moving Project,
·Russia Voronezh Nuclear Power Station,
·Shanghai Pengxin Mining Congo (Gold) Copper Project,
·Equatorial Guinea National Highway Equipment General Contracting.

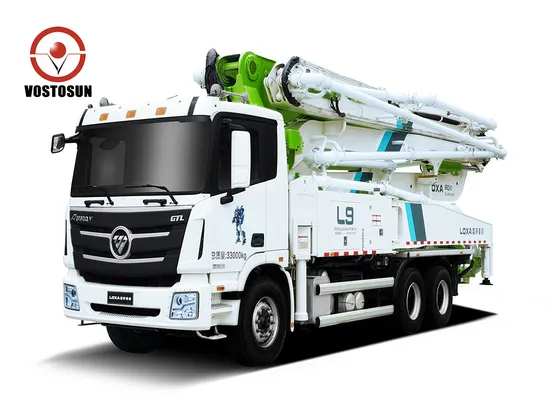

47M Concrete Truck Pump
Vehicle Name			47M Concrete Truck Pump
Vehicle Model			BJ5339THB-XD
Vehicle and Chassis	Pumping Delivery Height /Number of Sections of the Boom		47M-5RZ
	Dimensions(Length×Width×Height)(mm)		12000×2500×4000
	Chassis		FotonDaimler (JV Brand: FOTON& BENZ)
	Engine Type		Cummins ISG400
	Rated Power/Rated Speed(Kw/rpm)		294/1900
	Maximum Torque(N.m/rpm)		2100/1000-1300
Hydraulic system	working type		closed type
	system pressue		35
Pumping Punction	Theoretical Maximum Delivery Quantity(m³/h)		200
	Theoretical Maximum Delivery Height(m)		47
	Theoretical Maximum Delivery depth(m)		33.4
	Maximum Working Radius(m)		42.7
	Boom Rotation Angle(°)		±360
	Theoretical Pumping Pressure (Mpa)		8.8
	Delivery Cylinder Diameter(mm)		260
	Delivery Cylinder Distance(mm)		1900
	Delivery Pipe Diameter(mm)		125
	End Hose Length (m)		3
	End Hose Diameter (mm)		125

---
