Bare Copper Low and Medium Voltage Electrical Wire 240mm Cable

US$6.33-8.97 100 Meters (MOQ)

Basic Info.

Model NO.
CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2
Current
AC Cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE, RoHS, VDE
Model
Yjv32
Brand
Shanghai Shenghua
Armored
Galvanized Steel Wire
Conductor
Straned Copper
Insulation
XLPE
Insulation Color
Red,Black,Yellow,Green
Jacket
PVC
Inner Sheath
PVC
Rated Voltage
600/1000V
Standard
IEC60502
Bending Radius
12X Cable O.D
Test Voltage
3.5kv/5mins
Sample
Free
Apply
Power Station
Working Temp
90 ºC
Certificate
Kema
Dia of Swa
2.5mm
Transport Package
500m/Reel
Specification
3x185+1x95
Trademark
SHAN CABLE
Origin
Shanghai China
HS Code
8544492100
Production Capacity
9853km/Week

Product Description

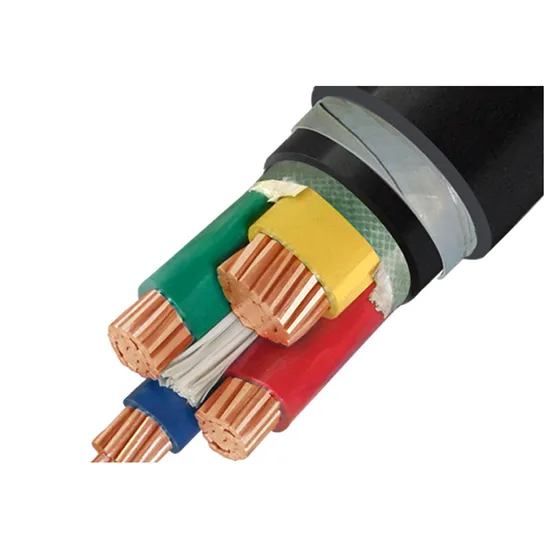

Steel Wire Armored XLPE Insulated Electrical Powwr Cable CU/XLPE/SWA/PVC-0.6/1KV 3x185+1x95 mm2
Construction:
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Galvanized steel wire
Sheath : PVC type ST2 to IEC 60502, black
Code Designation:
YJ: XLPE insulation
V: PVC sheath
32: Galvanized steel wire armoring
ZR: Flame resistant
Applications:
Apply to shafts,water and soil,able to bear the larger positive pressure.
Standards:
International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical Data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Detail Specifications:
Nom. Cross-section of conductor Strands
No./Dia. Of Conductor		 Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D. Approx.
Weight		 Max. D.C Resistance of Conductor (20 ºC) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
2 × 1.5 1/1.38 0.7 1.0 0.9 1.8 15.0 330 12.1 3.5 20 27
2 × 2.5 1/1.78 0.7 1.0 0.9 1.8 16.0 376 7.41 3.5 26 35
2 × 4 1/2.25 0.7 1.0 0.9 1.8 17.0 554 4.61 3.5 34 45
2 × 6 1/2.76 0.7 1.0 0.9 1.8 18.2 633 3.08 3.5 43 57
2 × 10 7/1.38 0.7 1.0 1.25 1.8 21.0 797 1.83 3.5 60 77
2 × 16 7/1.78 0.7 1.0 1.60 1.8 23.5 1124 1.15 3.5 83 105
2 × 25 7/2.14 0.9 1.0 1.6 1.8 26.0 1417 0.727 3.5 105 125
2 × 35 7/2.52 0.9 1.0 1.6 1.8 30.5 1694 0.524 3.5 125 155
2 × 50 10/2.52 1.0 1.0 1.6 1.8 27.0 1787 0.387 3.5 160 185
2 × 70 14/2.52 1.1 1.0 1.6 2 30.0 2181 0.268 3.5 200 225
2 × 95 19/2.52 1.1 1.2 1.6 2.1 34.0 2768 0.193 3.5 245 270
2 × 120 24/2.52 1.2 1.2 2.0 2.2 36.5 3500 0.153 3.5 285 310
2 × 150 30/2.52 1.4 1.2 2.0 2.4 42.0 4233 0.124 3.5 325 345
2 × 185 37/2.52 1.6 1.2 2.0 2.5 45.0 4979 0.0991 3.5 375 390
3 × 1.5 1/1.38 0.7 1.0 0.9 1.8 15.8 359 12.1 3.5 20 27
3 × 2.5 1/1.78 0.7 1.0 0.9 1.8 16.8 415 7.41 3.5 26 35
3 × 4 1/2.25 0.7 1.0 0.9 1.8 18.0 611 4.61 3.5 34 45
3 × 6 1/2.76 0.7 1.0 0.9 1.8 19.0 718 3.08 3.5 43 57
3 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 937 1.83 3.5 60 77
3 × 16 7/1.78 0.7 1.0 1.60 1.8 24.5 1318 1.15 3.5 83 105
3 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 1707 0.727 3.5 105 125
3 × 35 7/2.52 0.9 1.0 1.6 1.8 32.5 2071 0.524 3.5 125 155
3 × 50 10/2.52 1.0 1.0 1.6 1.9 33.0 2405 0.387 3.5 160 185
3 × 70 14/2.52 1.1 1.0 1.6 2.0 37.0 3084 0.268 3.5 200 225
3 × 95 19/2.52 1.1 1.2 1.6 2.1 43.0 4126 0.193 3.5 245 270
3 × 120 24/2.52 1.2 1.2 2.0 2.3 45.0 4901 0.153 3.5 285 310
3 × 150 30/2.52 1.4 1.4 2.0 2.4 51.0 6365 0.124 3.5 325 345
3 × 185 37/2.52 1.6 1.4 2.0 2.6 56.0 7555 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 1.4 2.5 2.8 62.0 9284 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 1.6 2.5 3.0 67.0 11226 0.0601 3.5 505 515
3 × 400 61/2.97 2.0 1.6 2.5 3.2 74.0 15714 0.0470 3.5 570 575
4 × 4 1/2.25 0.7 1.0 0.9 1.8 18.0 699 4.61 3.5 34 45
4 × 6 1/2.76 0.7 1.0 1.25 1.8 19.0 820 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 1.25 1.8 22.0 1233 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 1.6 1.8 24.5 1550 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 1.6 1.8 29.2 2036 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2.0 1.9 32.5 2501 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2.0 2.0 33.0 3064 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.0 2.0 2.1 37.0 3974 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2.0 2.3 43.0 5032 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.2 2.5 2.5 45.0 6327 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2.5 2.7 51.0 7765 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.4 2.5 2.8 56.0 9205 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.4 2.5 3.0 62.0 11444 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.6 2.5 3.2 67.0 13830 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.6 3.15 3.5 74.0 19673 0.0470 3.5 570 575
5 × 4 1/2.25 0.7 1.0 1.25 1.8 20.0 783 4.61 3.5 34 45
5 × 6 1/2.76 0.7 1.0 1.25 1.8 22.4 946 3.08 3.5 43 57
5× 10 7/1.38 0.7 1.0 1.6 1.8 25.8 1398 1.83 3.5 60 77
5 × 16 7/1.78 0.7 1.0 1.6 1.8 29.0 1784 1.15 3.5 83 105
5 × 25 7/2.14 0.9 1.0 1.6 1.8 34.2 2378 0.727 3.5 105 125
5 × 35 7/2.52 0.9 1.0 1.6 1.9 37.8 3237 0.524 3.5 125 155
5× 50 10/2.52 1.0 1.2 2.0 2.1 43.2 3994 0.387 3.5 160 185
5× 70 14/2.52 1.1 1.2 2.0 2.3 49.0 5514 0.268 3.5 200 225
5× 95 19/2.52 1.1 1.4 2.5 2.5 55.0 6816 0.193 3.5 245 270
5 × 120 24/2.52 1.2 1.4 2.5 2.6 61.0 8174 0.153 3.5 285 310
5 × 150 30/2.52 1.4 1.4 2.5 2.8 67.8 9859 0.124 3.5 325 345
5 × 185 37/2.52 1.6 1.6 2.5 3.0 74.3 11805 0.0991 3.5 375 390
5 × 240 48/2.52 1.7 1.6 3.2 3.3 83.0 15706 0.0754 3.5 440 450
3 × 4+ 1 × 2.5 1/2.25+1/1.38 0.7 1.0 0.9 1.8 18.7 624 4.61 3.5 34 45
3 × 6+ 1 × 4 1/2.76+1/2.25 0.7 1.0 0.9 1.8 20.0 752 3.08 3.5 43 57
3 × 10+ 1 × 6 7/1.38+1/2.8 0.7 1.0 1.25 1.8 23.3 1154 1.83 3.5 60 77
3 × 16+ 1 × 10 7/1.78+7/1.38 0.7 1.0 1.25 1.8 25.8 1456 1.15 3.5 83 105
3 × 25+ 1 × 16 7/2.14+7/1.78 0.9 1.0 1.6 1.8 30.0 1905 0.727 3.5 105 125
3 × 35+ 1 × 16 7/2.52+7/1.78 0.9 1.0 1.6 1.8 33.0 2259 0.524 3.5 125 155
3 × 50+ 1 × 25 10/2.52+7/2.14 1.0 1.0 1.6 1.9 35.5 2705 0.387 3.5 160 185
3 × 70+ 1 × 35 14/2.52+7/2.52 1.1 1.0 2.0 2.0 41.0 3729 0.268 3.5 200 225
3 × 95+ 1 × 50 19/2.52+10/2.52 1.1 1.2 2.0 2.1 46.0 4732 0.193 3.5 245 270
3 × 120+ 1 × 70 24/2.52+14/2.52 1.2 1.2 2.0 2.3 51.0 6071 0.153 3.5 285 310
3 × 150+ 1 × 70 30/2.52+14/2.52 1.4 1.4 2.5 2.4 56.5 7198 0.124 3.5 325 345
3 × 185+ 1 × 95 37/2.52+19/2.52 1.6 1.4 2.5 2.6 62.0 8558 0.0991 3.5 375 390
3 × 240+ 1 × 120 48/2.52+24/2.52 1.7 1.4 2.5 2.8 68.0 10580 0.0754 3.5 440 450
3 × 300+ 1 × 150 61/2.52+30/2.52 1.8 1.6 2.5 3.0 75.0 12742 0.0601 3.5 505 515
3 × 4+ 2 × 2.5 1/2.25+1/1.38 0.7 1.0 0.9 1.8 18.7 735 4.61 3.5 34 45
3 × 6+ 2 × 4 1/2.76+1/2.25 0.7 1.0 1.25 1.8 21.0 879 3.08 3.5 43 57
3 × 10+ 2 × 6 7/1.38+1/2.8 0.7 1.0 1.25 1.8 24.2 1263 1.83 3.5 60 77
3 × 16+ 2 × 10 7/1.78+7/1.38 0.7 1.0 1.6 1.8 27.5 1616 1.15 3.5 83 105
3 × 25+ 2 × 16 7/2.14+7/1.78 0.9 1.0 1.6 1.8 32.5 2142 0.727 3.5 105 125
3 × 35+ 2 × 16 7/2.52+7/1.78 0.9 1.0 1.6 1.9 35.5 2492 0.524 3.5 125 155
3 × 50+ 2 × 25 10/2.52+7/2.14 1.0 1.0 2.0 2.2 40.0 3408 0.387 3.5 160 185
3 × 70+ 2 × 35 14/2.52+7/2.52 1.1 1.0 2.0 2.4 45.6 4338 0.268 3.5 200 225
3 × 95+ 2 × 50 19/2.52+10/2.52 1.1 1.2 2.0 2.6 50.0 5374 0.193 3.5 245 270
3 × 120+ 2 × 70 24/2.52+14/2.52 1.2 1.2 2.5 2.7 56.9 7145 0.153 3.5 285 310
3 × 150+ 2 × 70 30/2.52+14/2.52 1.4 1.4 2.5 2.9 62.4 8076 0.124 3.5 325 345
3 × 185+ 2 × 95 37/2.52+19/2.52 1.6 1.4 2.5 3.0 67.6 9779 0.0991 3.5 375 390
3 × 240+ 2 × 120 48/2.52+24/2.52 1.7 1.4 2.5 3.2 73.8 12024 0.0754 3.5 440 450
3 × 300+ 2 × 150 61/2.52+30/2.52 1.8 1.6 3.15 3.4 83.0 14366 0.0601 3.5 505 515
4 × 4+ 1 × 2.5 1/2.25+1/1.38 0.7 1.0 0.9 1.8 20.0 752 4.61 3.5 34 45
4 × 6+ 1 × 4 1/2.76+1/2.25 0.7 1.0 1.25 1.8 21.5 913 3.08 3.5 43 57
4 × 10+ 1 × 6 7/1.38+1/2.8 0.7 1.0 1.25 1.8 25.0 1323 1.83 3.5 60 77
4 × 16+ 1 × 10 7/1.78+7/1.38 0.7 1.0 1.6 1.8 28.6 1691 1.15 3.5 83 105
4 × 25+ 1 × 16 7/2.14+7/1.78 0.9 1.0 1.6 1.8 33.5 2256 0.727 3.5 105 125
4 × 35+ 1 × 16 7/2.52+7/1.78 0.9 1.0 1.6 1.9 36.0 2957 0.524 3.5 125 155
4 × 50+ 1 × 25 10/2.52+7/2.14 1.0 1.2 2.0 2.2 42.0 3643 0.387 3.5 160 185
4 × 70+ 1 × 35 14/2.52+7/2.52 1.1 1.2 2.0 2.4 47.0 4614 0.268 3.5 200 225
4 × 95+ 1 × 50 19/2.52+10/2.52 1.1 1.2 2.0 2.6 51.2 6140 0.193 3.5 245 270
4 × 120+ 1 × 70 24/2.52+14/2.52 1.2 1.4 2.5 2.8 59.0 7544 0.153 3.5 285 310
4 × 150+ 1 × 70 30/2.52+14/2.52 1.4 1.4 2.5 3.0 64.0 8733 0.124 3.5 325 345
4 × 185+ 1 × 95 37/2.52+19/2.52 1.6 1.6 2.5 3.1 71.0 10597 0.0991 3.5 375 390
4 × 240+ 1 × 120 48/2.52+24/2.52 1.7 1.6 2.5 3.3 78.0 13029 0.0754 3.5 440 450
4 × 300+ 1 × 150 61/2.52+30/2.52 1.8 1.6 3.15 3.5 88.0 17172 0.0601 3.5 505 515

Packing and Packing Photo
500m/wooden drum or 1000m/wooden drum.
