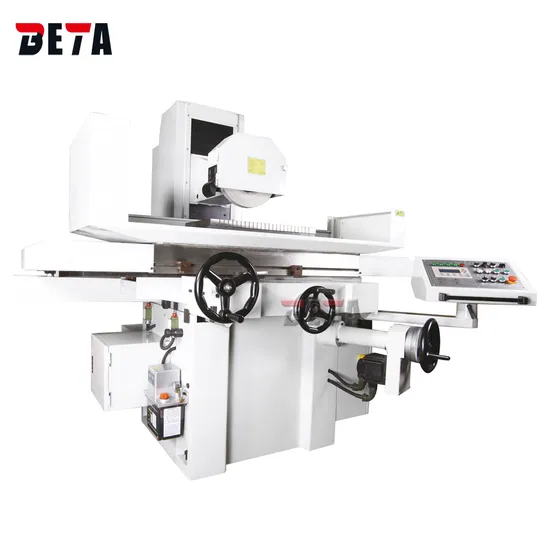

Hydraulic high accuracy metal grind automatic surface grinding machine SGA3063AHD
| Model | Unit | SGA3063AH | SGA3063AHR | SGA3063AHD |
| Table size | mm | 305*635 | 305*635 | 305*635 |
| Magnetic chuck size | mm | 300*600 | 300*600 | 300*600 |
| Max.distance from spindle center to table | mm | 580 | 580 | 580 |
| Table cross travel | mm | 340 | 340 | 340 |
| Table longitudinal travel | mm | 765 | 765 | 765 |
| Max.loading capacity (include chuck) | kg | 270 | 270 | 270 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| Cross motion rapid speed | mm/min | 990 | 990 | 990 |
| Cross motion feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion auto down feed rate | mm/t | - | - | 0.005~0.5 |
| vertical motion rapid down speed | mm/min | - | 650 | 480 |
| vertical motion feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) |
| grind wheel size | mm | 350*40*127 |
| spindle motor power | kw | 4 |
| floor space (L*W*H) | mm | 2900*2200*1900 |
| Gross weight | kg | 2800 |
| Packing size (L*W*H) | mm | 2350*2220*2210 |
| | | |
| | | |
Operating manual Working lamp Balancing arbor Standard grinding wheel Magnetic chuck Built-in magnetic chuck controller Coolant tank Wheel flange and extractor Wheel dresser stand Leveling wedge and screw
Balancing stand Magnetic separator Paper filter Oil tank guard Dust exhaust Parallel wheel dresser 2-Axis digital readout Extra wheel flange
