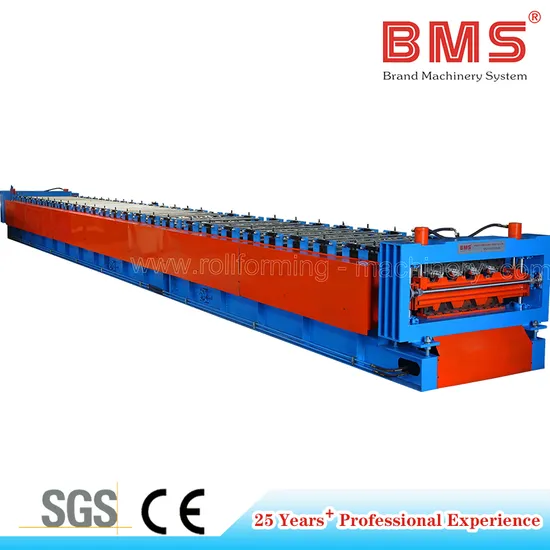

Precision Machining Double Layer Floor Deck Roll Forming Machine

Product Description

Precision Machining Double Layer Floor Deck Roll Forming Machine
Product Description
Double Layer Floor Deck Roll Forming Machine For YX45-982/YX50-955 Profile

Profile
Material
Effective width: 982/955 mm
Feeding width: about 1219/1219 mm
Material Thickness: 0.7-1.2/0.8-1.5mm
Applicable material:GI
With yield strength 235-390Mpa
Hydraulic Pre-Cutter
Main Machine
body frame made from H450 type steel by welding
Side wall thickness: Q235 t20mm
Embossing Rollers manufactured from Gcr15 Steel.
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
Gear/Sprocket driving,about 24-step(Upper Layer)/24-step(Down Layer) to form
Main Motor=22KW*2,Frequency speed control
Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
All the screw bolts with grade 8.8
Real forming speed 18-25 m/min(Not include cutting time)
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:11 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station
PLC Control System
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
PLC:Siemens(Germany brand)/Schneider(French brand)
Inverter:Siemens(Germany brand)/Schneider(French brand)
7-Inch Color Touch Screen:Siemens(Germany brand)/Schneider(French brand)
Encoder: Omron (Japan brand)
Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor,
Thermal Relay: Siemens(Germany brand)/Schneider(French brand)
Air Switch: LG-LS(Korea brand)
Cut-to-Length Tolerance≤±1 mm
Control Voltage 24V

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
