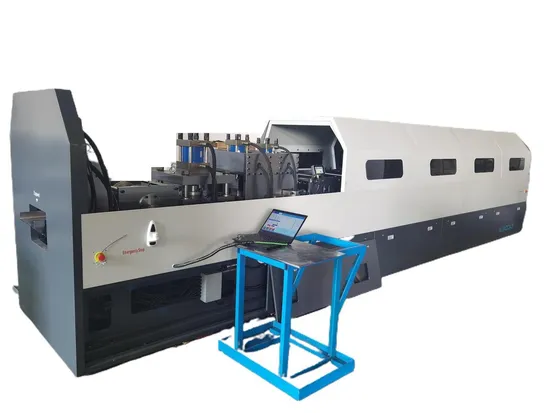

Light Gauge Steel House Lgs Framing Roll Forming Machine for Villa

Product Description

Main Technical Data

Size	C305/310
Dimension	7600x1500x1700mm
Main Servo Motor Power	22KW
Hydraulic Motor	11kw
Forming Steps	12Steps
Forming Speed	15tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	305mm,310mm
Material Width	425mm
Flange Height	50mm
Lip	12mm
Material Thickness	G300-G450:0.95-2.5mm G550:0.95-2.0mm
Tolerance for cutting and punching	±1mm
Tolerance for forming	±1mm
Control System	IPC Computer Controlling System
Design Software	Vertex Software
Material for All Roller	SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft	SKD-11
Material for Puncher	SKD-11
Material for Cutter	SKD-11

Main Accessories

1 Main Forming Machine

2 5 Tons Hydraulic Uncoiler

3 Servo Motor System

4 IPC Computer Controlling System (Lenovo Laptop)

5 Production Software (1set)

6 Design Software-Vertex,forever using license

7 Hydraulic Automatic Punching Device (Lip Notch,Swage,Big Service Hole,Triple Web Hole,Triple Flange Hole)

8 Hydraulic Post-cutting Device (Material:SKD-11)

9 Automatic Printing Device

10 Run Out Table (4m)

11 Operation Manual

Related Products
Rollex-2020
XHH C63-140
XHH-C75
XHH-89-JC Model
XHH-89-5S Model
XHH-140 Model
XHH-160 Model
Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.

---
