Kgs515CNC-3 CNC Grinding Machine

Product Description

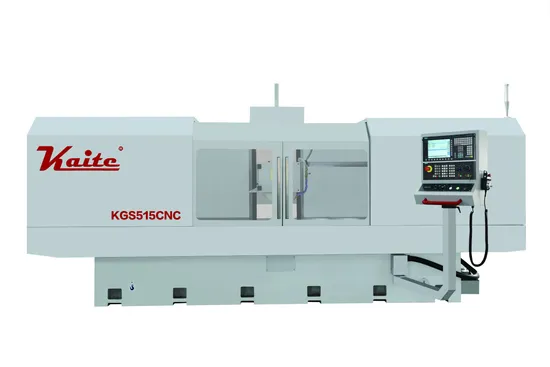

1. Picture
2. Parameters

Parameters		Unit	KGS510CNC-2	KGS515CNC-2	KGS510CNC-3	KGS515CNC-3
Grinding Square Meter		mm	500*1000	500*1000	500*1000	500*1000
Max.Table Travel		mm	1100	1600	1100	1600
Max.Cross Travel		mm	550	550	550	550
Distance Between Table Surface and Spindle Center		mm	600	600	600	600
Max.Table Load		kgs	800	1000	800	1000
Table Speed		m/min	8~25	8~25	1~16	1~6
Cross Speed		mm/min	1~4500	1~4500	1~4500	1~4500
Min Cross Feedrate		mm	0.001	0.001	0.001	0.001
Grinding Wheel Dimensions		mm	400x50x127	400x50x127	400x50x127	400x50x127
Spindle Speed		rpm	1400	1400	1400	1400
Min Down Feedrate		mm	0.001	0.001	0.001	0.001
Spindle Motor		kw	11	11	11	11
Spindle Speed		rpm	1400	1400	1400	1400
Floor Space		mm	4000x3300	5000x3300	4000x3300	5000x3300
Packing Dimensions		mm	4700x2290x2505	4700x2290x2505	4700x2290x2505	4700x2290x2505
Net Weight		kgs	6000	8000	6000	8000
Gross Weight		kgs	7000	9000	7000	9000

3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Main hydraulic components: brand from TAIWAN.
4. Standard Accessories

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric magnetic chuck
11	Cooling system	12	Working light

5. Optional Accessories

Serial No.	Name of Article
1	rear splash guard
2	DRO (digital read out)
3	overhead parallel dresser
4	hydraulic tank oil cooling
5	cooling & suction device
6	magnetic separator
7	cooling magnetic paper filter
Note	6 and 7, select one just OK.

6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Safety 24V control circuit power
7. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
8. Delivery Picture

---
