High Precision Factory Sale 50mm Horizontal Vertical Universal Milling Machine Sp2241 Fresadora Universal 7550 Optimum Milling Drilling Machine Zx7550 Zx6350 CE

Product Description

Product Description

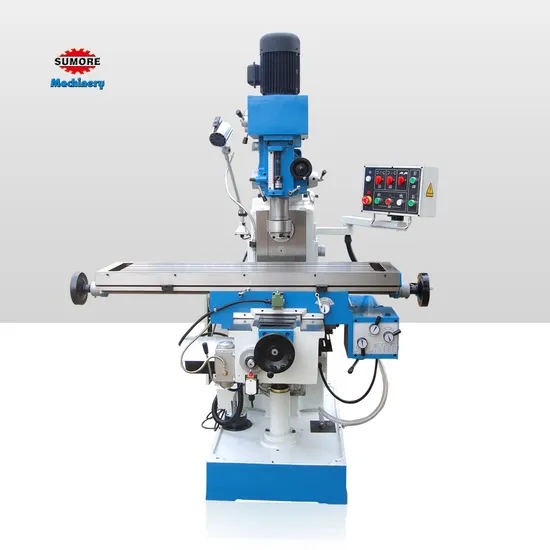

High Precision Factory sale 50mm Horizontal Vertical Universal Milling Machine Sp2241 Fresadora Universal 7550 Optimum Milling drilling machine Zx7550 Zx6350 CE universal milling machine fresadora universal turret milling machine SP2241
Quick detais
1.Spindle taper: ISO40(V) ISO40(H)
2.Horizontal milling dia.:100mm
3.Distance from spindle to table.:90~370 mm
4.Head tilt left & right:+45°
5.Spindle speed: 90-2000rpm/38-1310 rpm
6.Working tabel:280*1270mm
7.Power:3HP(V) 2200W
Features/Advantages
1.Three axis hardened treatment, high rigidity.2.vertical horizontal multi-functional ,drilling ,milling, boring operation.3.X axis mechanical feed,Y.Z axis can be added the device4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
5.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press6.Easily shiftable gear drive ensures power transmission without losses7.With V-belt spindle drive and gear spindle drive8.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
9. Drilling Milling machine adopts belt drive, low noise, suitable for drilling, expanding, reaming and milling on various common materials
10.Drilling Milling machine has 12 speeds and a wide range of speeds, suitable for processing various commonly used soft and hard materials
11. Spindle box and worktable can be raised and lowered, and can also be rotated around column, which expands processing range
12.This machine tool can be equipped with multi-axis machines
Product Parameters

Model	SP2241
Worktable size	1270x280 mm
Horizontal travel	800 mm
Cross travel	350 mm
Vertical travel	400 mm
Distance from spindle to table	90~370 mm
Spindle speeds	(16 steps) 80 - 5,440 rpm (V) 40 - 1,300 rpm (H)
Spindle taper	ISO40
Spindle travel	127 mm
Feeding of quill	(3 steps) 0.04 / 0.08 / 0.15 mm/rev
Head movement	+/- 45°
Main motor power	3HP(V) 2.2KW(H)
Overall dimension (LxWxH)	1,600 x 1,550 x 2,250 mm
Weight	1,250/1,350 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
